JCPT1008HAElectric Slab Scissor LiftELECTRIC

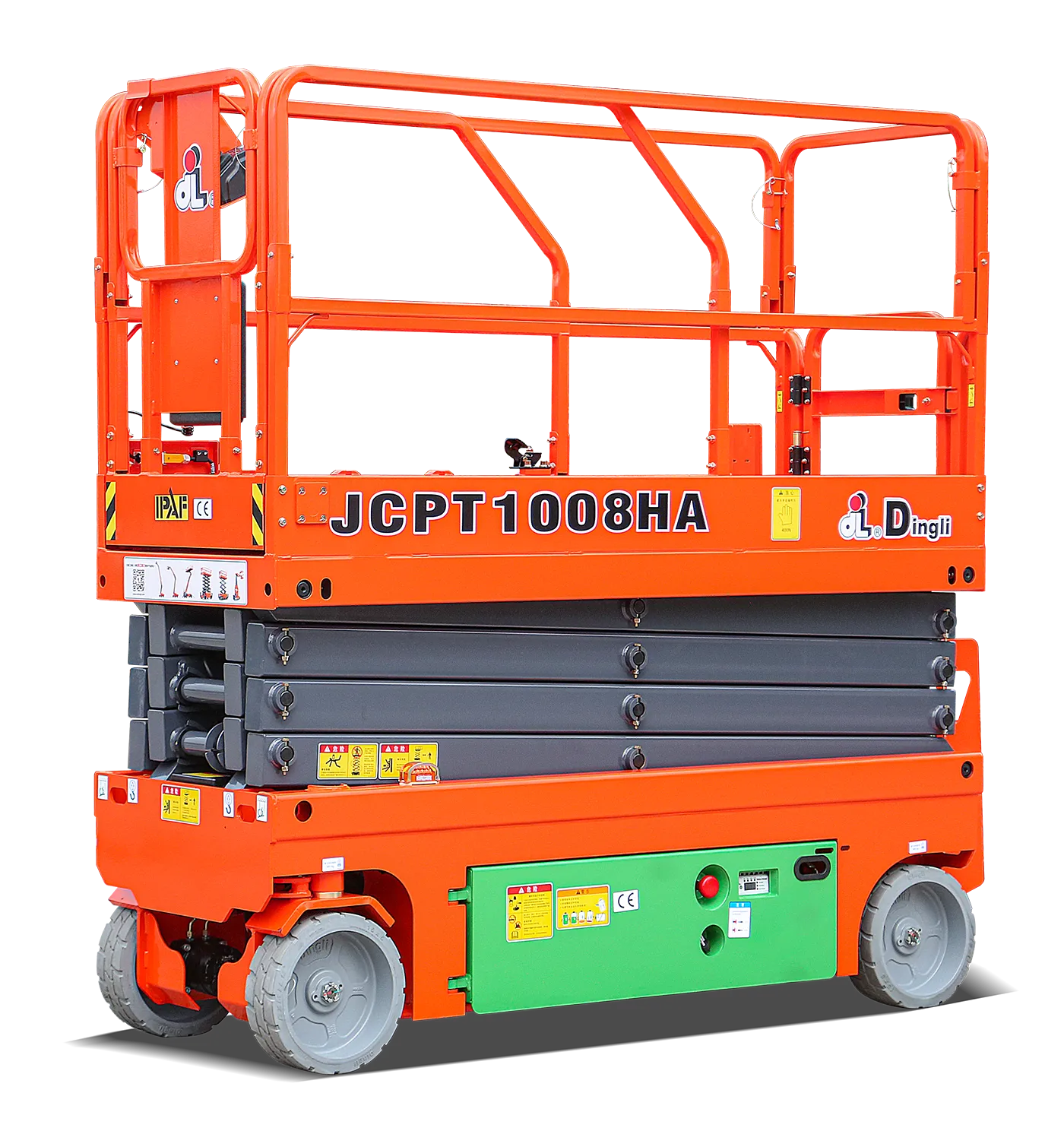

JCPT1008HA Electric Slab Scissor Lift
₹ 10,94,386
+ 18% GST = ₹ 12,91,375 incl.
10.00m/32ft 10inmWorking Height
2/0Occupants
Description
Designed for seamless performance and operational efficiency, JCPT1008HA is equipped with a hydraulic pump for lifting and driving. Equipped with enhanced safety features, this maintenance-free scissor lift is suitable for a wide range of maintenance tasks.
Key Features
- Automatic pothole protection system
- Overall width is 0.83m
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/185Ah high-capacity battery pack
Specifications
Max. Working Height10.00m/32ft 10in
Max. Platform Height8.00m/26ft 3in
Overall Length(With Ladder)2.48m/8ft 2in
Overall Width0.83m/2ft 9in
Overall Height(Rails Up)2.36m/7ft 9in
Overall Height(Rails Down)2.00m/6ft 7in
Platform Size(Length×Width)2.27m×0.81m/7ft 5in×2ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase1.87m/6ft 2in
Turning Radius(Inside/Outside)0m/2.10m / 0in/6ft 11in
Tyresφ381×127mm
S.W.L230kg/507lb
S.W.L On Extension113kg/249lb
Max. Occupants2/0
Gradeability25%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed30/34sec
Overall Weight(Lead-acid Battery)2190kg/4828lb
Overall Weight(Lithium Battery)2130kg/4695lb
Hydraulic Tank20L/5gal 3pt
Battery24V/185Ah
Charger24V/30A
Lifting Motor15VAC/3.5kW
Power SourceHydraulic
