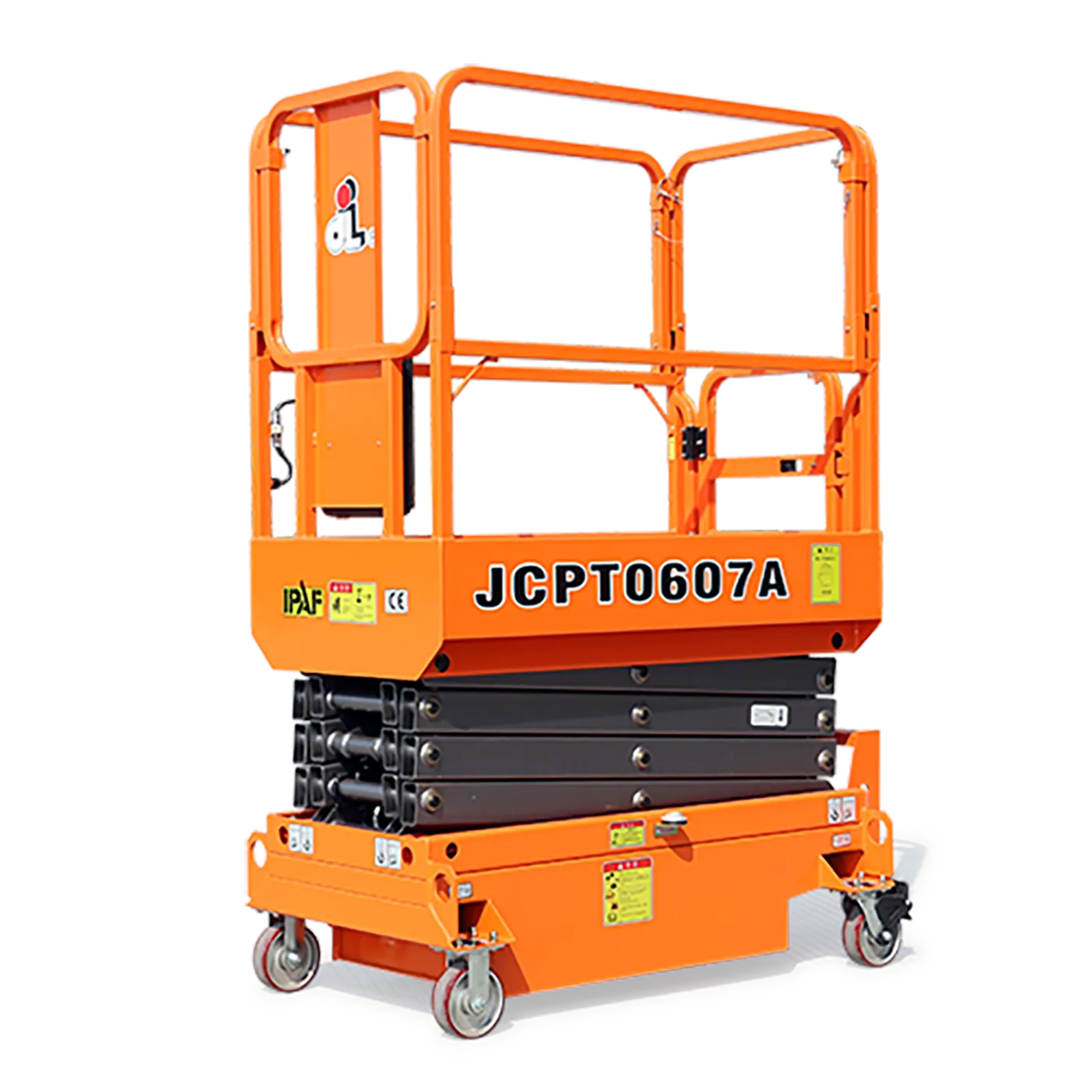

JCPT0607AScissor Lift
JCPT0607A Scissor Lift
5.90m/19ft 4inmWorking Height
1/0Occupants
Description
Lightweight and flexible, JCPT0607A, the compact mini scissor from Dingli, is specially designed for building mezzanine aerial working. Environmentally friendly with no noise, zero emissions, this versatile scissor lift is easy to transport and operate
Key Features
- Small Volume for easy access and use
- Access to the elevator at will
- Equipped with 24V/85Ah battery pack
Specifications
Max. Working Height5.90m/19ft 4in
Max. Platform Height3.90m/12ft 10in
Overall Length1.44m/4ft 9in
Overall Width0.76m/2ft 6in
Overall Height(Rails Up)1.92m/6ft 4in
Overall Height(Rails Down)1.52m/5ft
Platform Size(Length×Width)1.29m×0.70m/4ft 3in×2ft 4in
Ground Clearance0.06m/2in
Wheelbase1.14m/3ft 9in
Tyresφ150×50mm
S.W.L240kg/529lb
Max. Occupants (Indoor/Outdoor)1/0
Max. Working SlopeX-1°/Y-1°
Up/Down Speed38/25sec
Overall Weight530kg/1168lb
Hydraulic Tank3L/8pt
Battery12V/85Ah
Charger12V/15A
Lifting Motor12VDC/0.8kW
Power SourceElectric
