JCPT0607DCMElectric Slab Scissor LiftELECTRIC

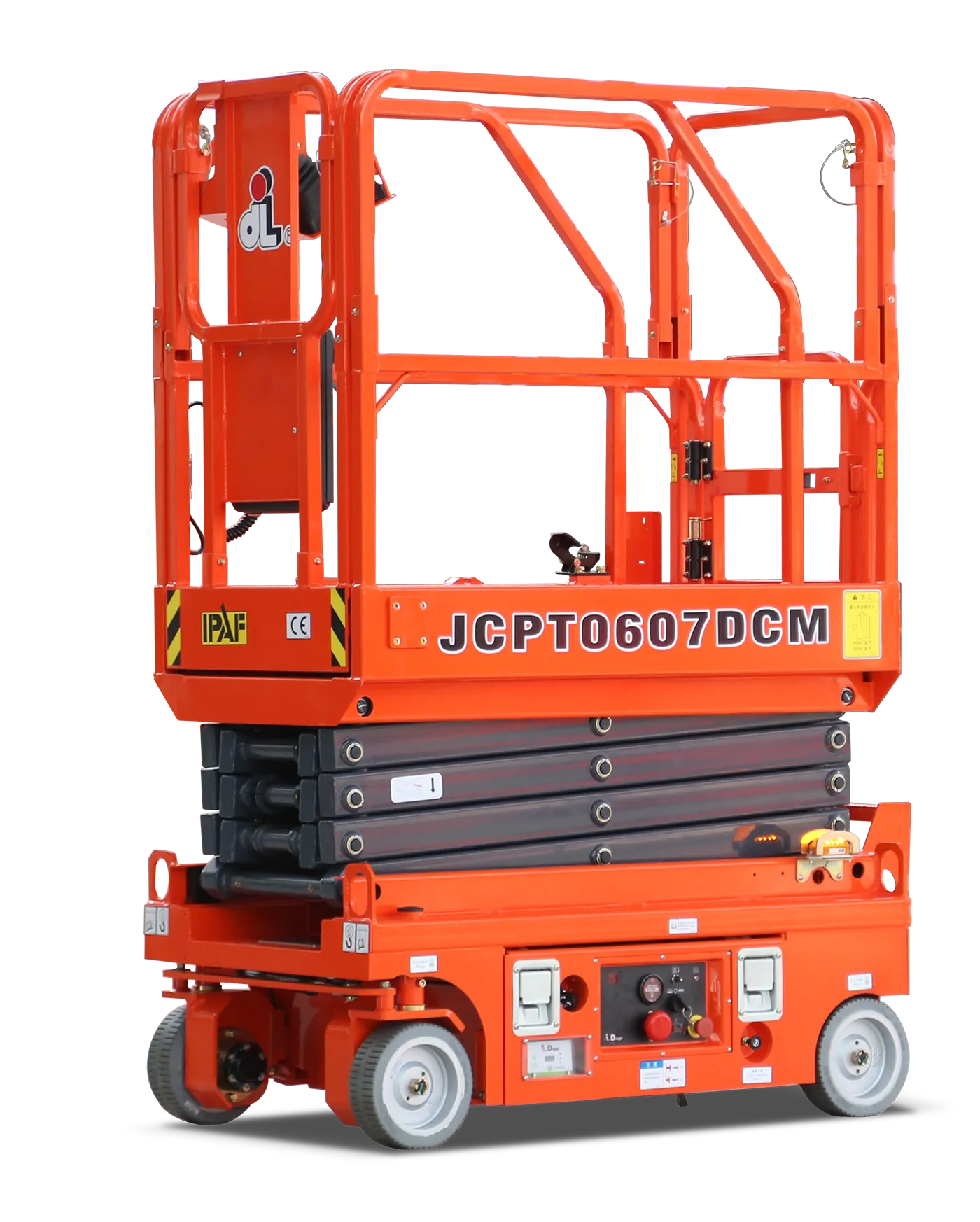

JCPT0607DCM Electric Slab Scissor Lift
5.60m/18ft 4inmWorking Height
2/1Occupants
Description
Lightweight and flexible, JCPT0607DCM Dingli’s sturdy mini scissor lift, is suitable for building mezzanine aerial working. Environmentally friendly with no noise, zero emissions, this versatile scissor lift is easy to transport and operate
Key Features
- Small Volume for easy access and use
- Equipped with 24V/85Ah battery pack
- Robust yet lightweight
Specifications
Max. Working Height5.60m/18ft 4in
Max. Platform Height3.60m/11ft 10in
Overall Length(Without Ladder )1.29m/4ft 3in
Overall Length(With Ladder)1.44m/4ft 9in
Overall Width0.76m/2ft 6in
Overall Height(Rails Up)1.99m/6ft 6in
Overall Height(Rails Down)1.62m/5ft 3in
Platform Size(Length×Width)1.29m×0.70m/4ft 3in×2ft 4in
Platform Extension Size0.60m/2ft
Ground Clearance(Stowed/Raised)0.06m/0.015m / 2in/1in
Wheelbase1.05m/3ft 5in
Turning Radius(Inside/Outside)0.40m/1.55m / 1ft 4in/5ft 1in
Tyresφ230×80mm
S.W.L240kg/529lb
S.W.L On Extension100kg/220lb
Max. Occupants2/1
Gradeability25%
Travel Speed(Stowed)4.0km/h / 2.49mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed27/20sec
Overall Weight(Lead-acid Battery)920kg/2028lb
Hydraulic Tank3L/8pt
Battery(Lead-acid Battery)24V/85Ah
Charger24V/15A
Driving Motor2×24V/0.4kW
Lifting Motor24V/1.2kW
Power SourceElectric
