JCPT0608DCHElectric Slab Scissor LiftELECTRIC

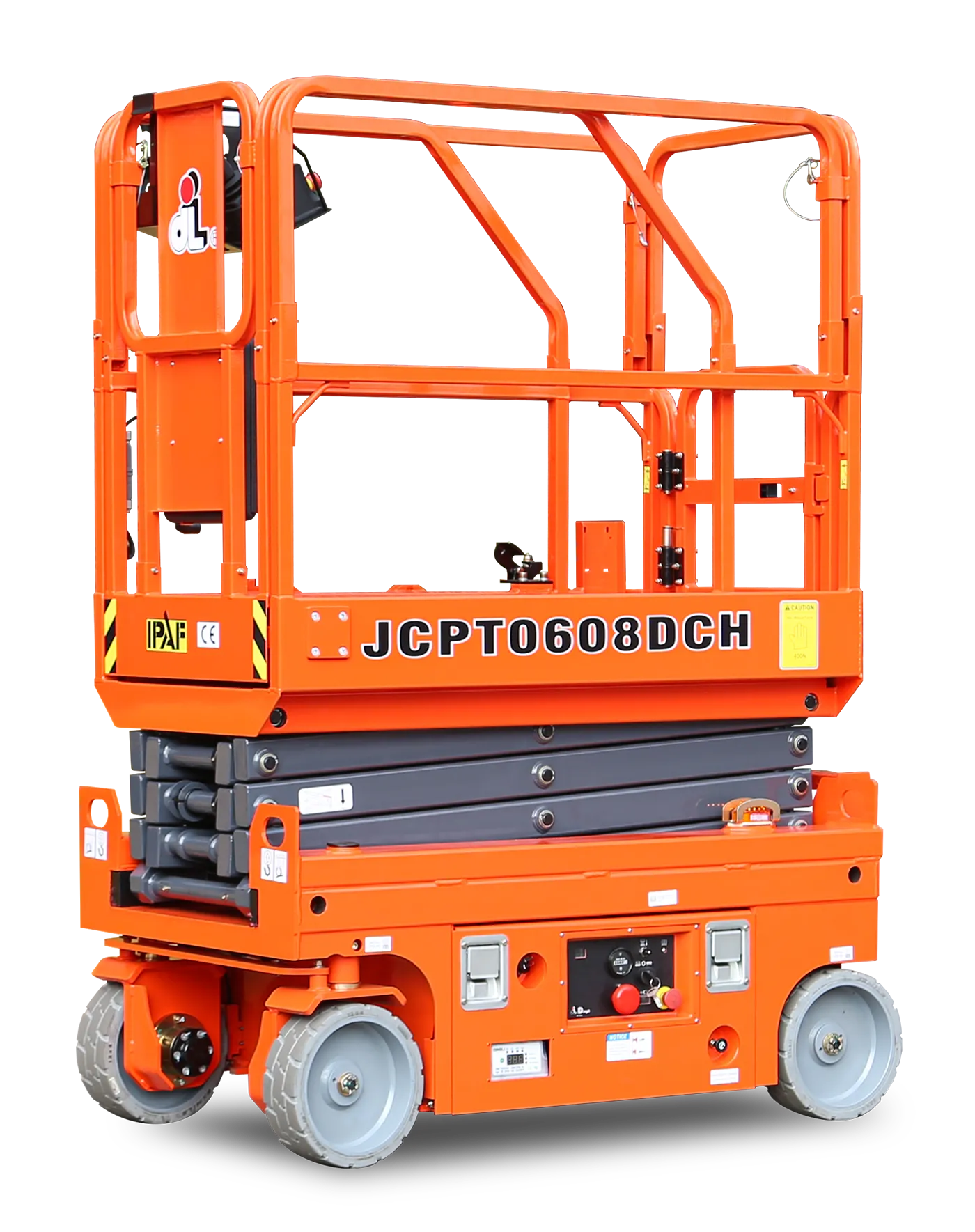

JCPT0608DCH Electric Slab Scissor Lift
6.50m/21ft 4inmWorking Height
2/0Occupants
Description
Lightweight and flexible, JCPT0608DCH Dingli’s sturdy mini scissor lift, is suitable for building mezzanine aerial working. Environmentally friendly with no noise, zero emissions, this versatile scissor lift is easy to transport and operate
Key Features
- Small Volume for easy access and use
- Equipped with 24V/115Ah battery pack
- Robust yet lightweight
Specifications
Max. Working Height6.50m/21ft 4in
Max. Platform Height4.50m/14ft 9in
Overall Length(With Ladder)1.54m/5ft 1in
Overall Width0.81m/2ft 8in
Overall Height(Rails Up)2.00m/6ft 7in
Overall Height(Rails Down)1.64m/5ft 5in
Platform Size(Length×Width)1.37m×0.70m/4ft 6in×2ft 4in
Platform Extension Size0.60m/2ft
Ground Clearance(Stowed/Raised)0.07m/0.015m / 3in/1in
Wheelbase1.15m/3ft 9in
Turning Radius(Inside/Outside)0.45m/1.60m / 1ft 6in/5ft 3in
Tyresφ305×100mm
S.W.L230kg/507lb
S.W.L On Extension113kg/249lb
Max. Occupants2/0
Gradeability25%
Travel Speed(Stowed)4.0km/h / 2.49mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed21/19sec
Overall Weight(Lead-acid Battery)995kg/2194lb
Hydraulic Tank4L/1gal
Battery(Lead-acid Battery)24V/115Ah
Charger24V/15A
Driving Motor2×24VDC/0.45kW
Lifting Motor24VDC/2.2kW
Power SourceElectric
