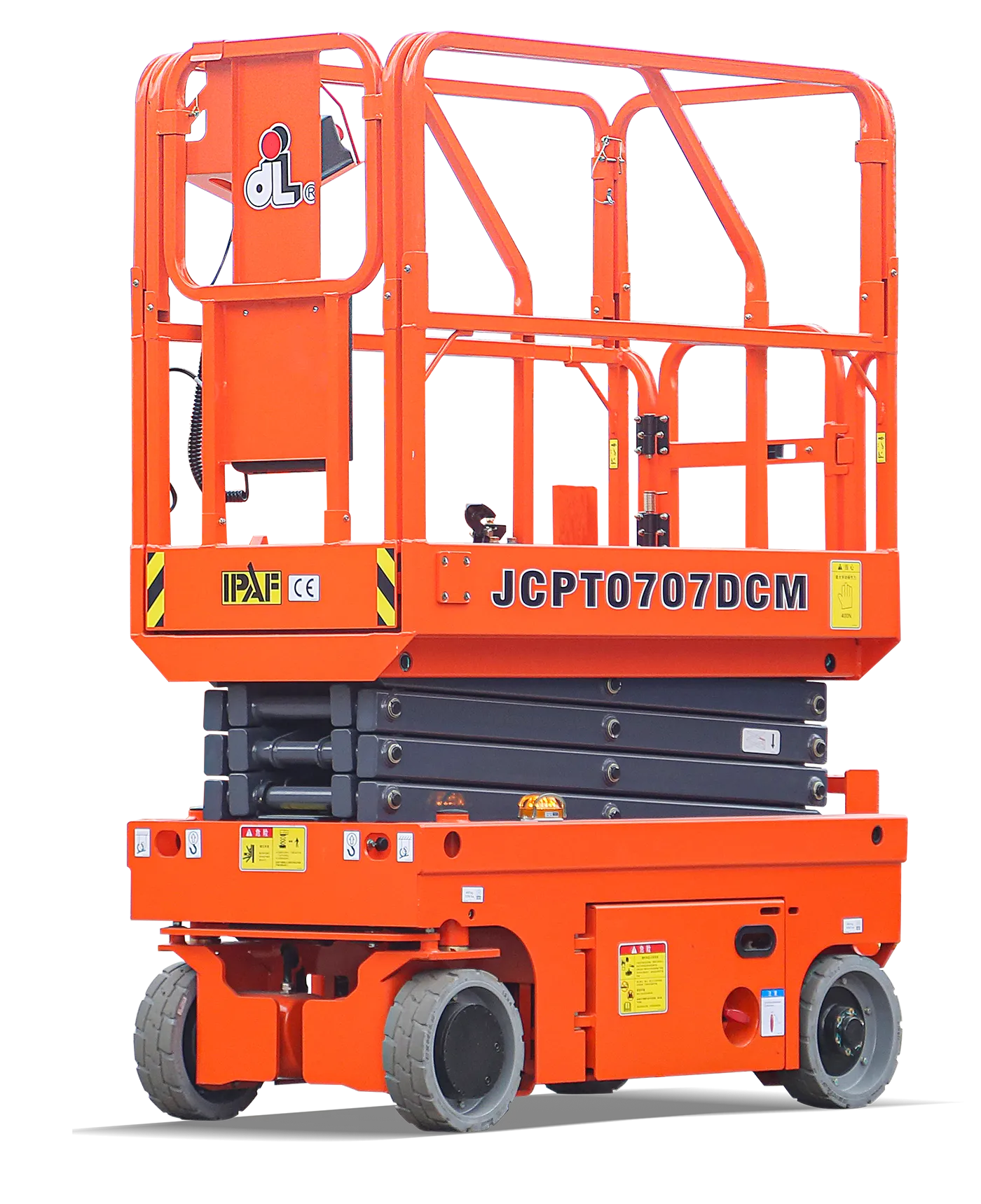

JCPT0707DCM Electric Slab Scissor Lift
6.50m/21ft 4inmWorking Height
2/1Occupants
Description
Compact and flexible, JCPT0707DCM Dingli’s lightweight mini scissor lift, is suitable for building mezzanine aerial working. Environmentally friendly with no noise, zero emissions, this versatile scissor lift is easy to transport and operate
Key Features
- Small Volume for easy access and use
- Equipped with 24V/115Ah battery pack
- Robust yet lightweight
Specifications
Max. Working Height6.50m/21ft 4in
Max. Platform Height4.50m/14ft 9in
Overall Length(Without Outriggers)1.43m/4ft 8in
Overall Length(With Outriggers)1.58m/5ft 2in
Overall Width0.76m/2ft 6in
Overall Height(Rails Up)2.05m/6ft 9in
Overall Height(Rails Down)1.68m/5ft 6in
Platform Size(Length×Width)1.44m×0.74m/4ft 9in×2ft 5in
Platform Extension Size0.60m/2ft
Ground Clearance(Stowed/Raised)0.07m/0.016m / 3in/1in
Wheelbase1.12m/3ft 8in
Turning Radius(Inside/Outside)0m/1.30m / 0in/4ft 3in
Tyresφ305×100mm
S.W.L230kg/507lb
S.W.L On Extension113kg/249lb
Max. Occupants2/1
Gradeability25%
Travel Speed(Stowed)4.5km/h / 2.80mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed22/20sec
Overall Weight(Without Outriggers)1200kg/2646lb
Hydraulic Tank3.5L/9pt
Battery(Lead-acid Battery)24V/115Ah
Charger24V/15A
Driving Motor2×24V/0.5kW
Lifting Motor24V/2.2kW
Power SourceElectric
