JCPT0708DCMElectric Slab Scissor LiftELECTRIC

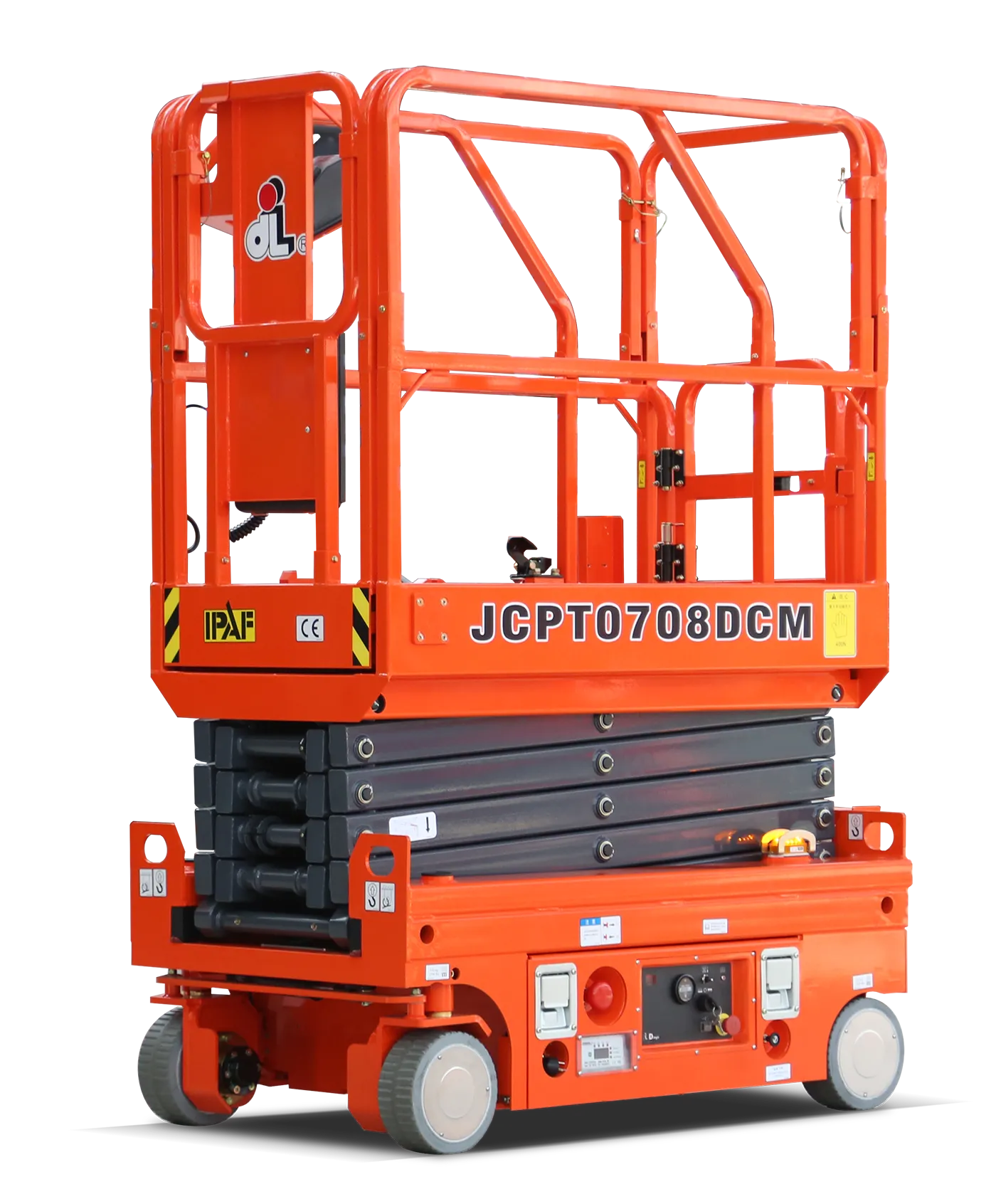

JCPT0708DCM Electric Slab Scissor Lift
7.60m/24ft 11inmWorking Height
2/0Occupants
Description
Compact and flexible, JCPT0708DCM Dingli’s lightweight mini scissor lift, is suitable for building mezzanine aerial working. Environmentally friendly with no noise, zero emissions, this versatile scissor lift is easy to transport and operate
Key Features
- Small Volume for easy access and use
- Equipped with 24V/115Ah battery pack
- Robust yet lightweight
Specifications
Max. Working Height7.60m/24ft 11in
Max. Platform Height5.60m/18ft 4in
Overall Length(Without Ladder)1.37m/4ft 6in
Overall Length(With Ladder)1.52m/5ft
Overall Width0.81m/2ft 8in
Overall Height(Rails Up)2.01m/6ft 7in
Overall Height(Rails Down)1.65m/5ft 5in
Platform Size(Length×Width)1.37m×0.70m/4ft 6in×2ft 4in
Platform Extension Size0.60m/2ft
Ground Clearance(Stowed/Raised)0.06m/0.015m / 2in/1in
Wheelbase1.13m/3ft 8in
Turning Radius(Inside/Outside)0.45m/1.60m / 1ft 6in/5ft 3in
Tyresφ230×100mm
S.W.L230kg/507lb
S.W.L On Extension113kg/249lb
Max. Occupants2/0
Gradeability25%
Travel Speed(Stowed)4.0km/h / 2.49mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed30/23sec
Overall Weight(Lead-acid Battery)1300kg/2866lb
Hydraulic Tank4L/1gal
Battery(Lead-acid Battery)24V/115Ah
Charger24V/15A
Driving Motor2×24V/0.5kW
Lifting Motor24VDC/2.2kW
Power SourceElectric
