JCPT0807ACElectric Slab Scissor LiftELECTRIC

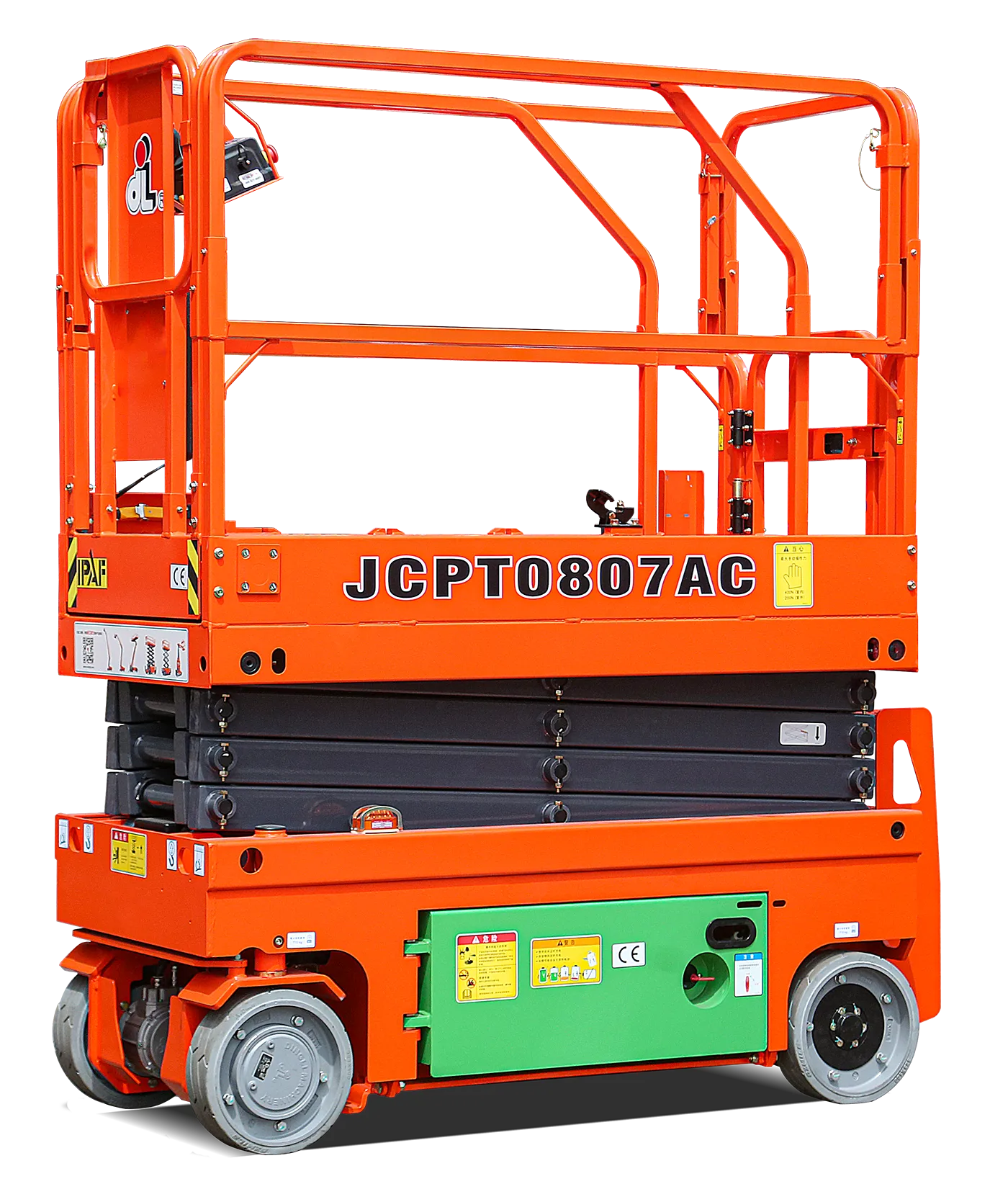

JCPT0807AC Electric Slab Scissor Lift
₹ 9,43,504
+ 18% GST = ₹ 11,13,335 incl.
7.80m/25ft 7inmWorking Height
2/1Occupants
Description
Reliable and maintenance-free, JCPT0807AC is equipped with a fully sealed AC system to drive and lift. This ensures operational safety and comfort. This waterproof and reliable scissor lift is suitable for a wide range of maintenance tasks.
Key Features
- Automatic pothole protection system
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/185Ah high-capacity battery pack
Specifications
Max. Working Height7.80m/25ft 7in
Max. Platform Height5.80m/19ft
Overall Length(With Ladder)1.86m/6ft 1in
Overall Width0.76m/2ft 6in
Overall Height(Rails Up)2.15m/7ft 1in
Overall Height(Rails Down)1.83m/6ft
Platform Size(Length×Width)1.67m×0.74m/5ft 6in×2ft 5in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.09m/0.016m / 4in/1in
Wheelbase1.36m/4ft 6in
Turning Radius(Inside/Outside)0m/1.64m / 0in/5ft 5in
Tyresφ323×100mm
S.W.L230kg/507lb
S.W.L On Extension113kg/249lb
Max. Occupants2/1
Gradeability25%
Travel Speed(Stowed)4.5km/h / 2.80mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed21/25sec
Overall Weight(Lead-acid Battery)1630kg/3593lb
Overall Weight(Lithium Battery)1580kg/3483lb
Hydraulic Tank6.5L/1gal7pt
Battery24V/185Ah
Charger24V/30A
Driving Motor2×15VAC/0.5kW
Lifting Motor15VAC/3.0kW
Power SourceElectric
