JCPT1008ACSElectric Slab Scissor LiftELECTRIC

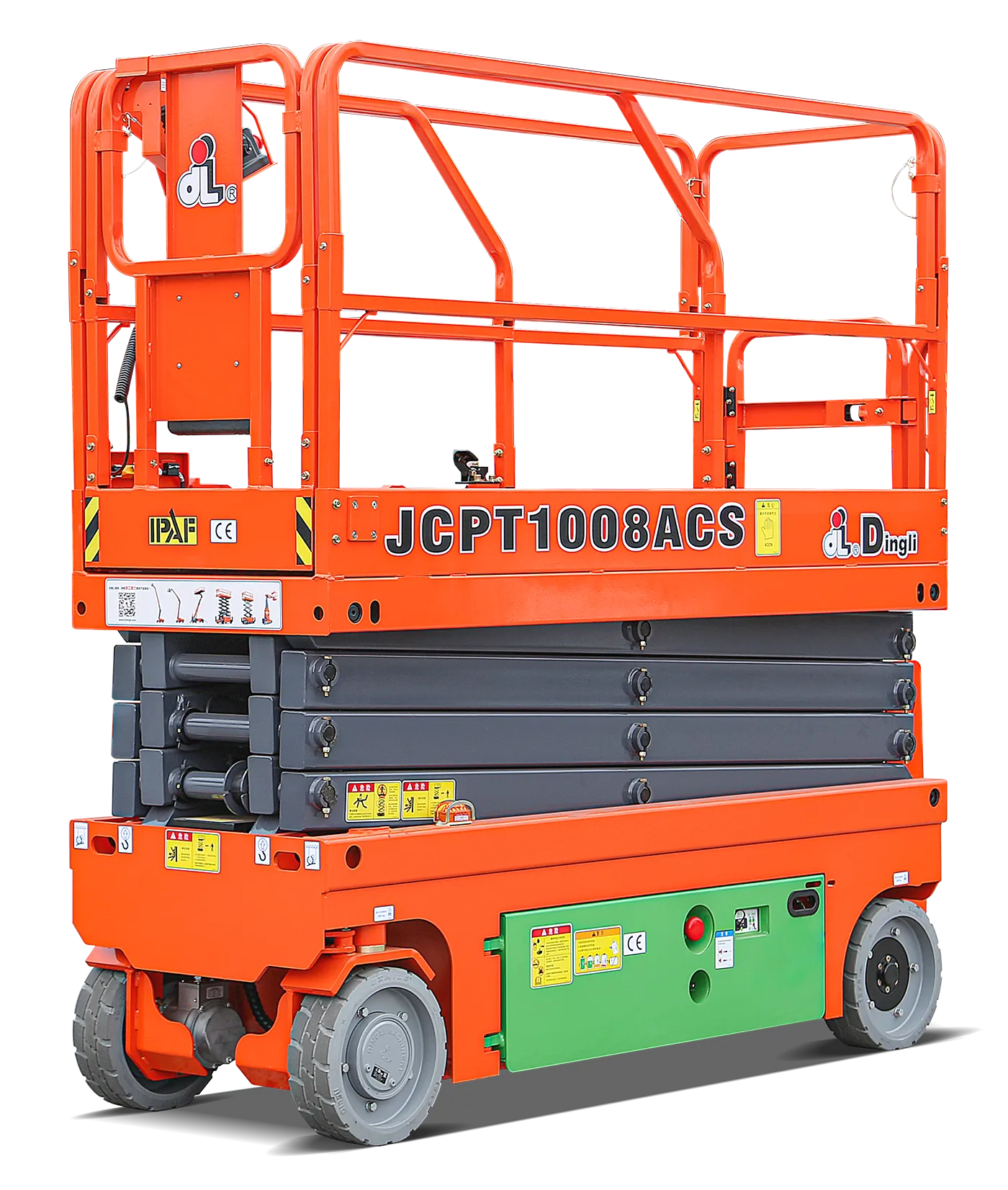

JCPT1008ACS Electric Slab Scissor Lift
9.60mmWorking Height
2/2Occupants
Description
Designed for operational efficiency and equipped with strong safety features, JCPT1008ACS is maintenance-free, and comes with a fully sealed AC system to drive and lift. This waterproof and reliable scissor lift is suitable for a wide range of maintenance tasks.
Key Features
- Automatic pothole protection system
- Overall width is 0.81m
- One-way platform extension deck
- Tubing explosion-proof system
- Automatic display of fault code to reduce downtime
- Equipped with 24V/185Ah high capacity battery pack
Specifications
Max. Working Height9.60m
Max. Platform Height7.60m
Overall Length(With Ladder)1.88m
Overall Width0.81m
Overall Height(Rails Up)2.30m
Overall Height(Rails Down)1.97m
Platform Size(Length×Width)1.725mx0.74m
Platform Extension Size0.90m
Ground Clearance(Stowed/Raised)0.09m/0.016m
Wheelbase1.40m
Turning Radius(Inside/Outside)0m/1.70m
Tyresφ323×125mm
S.W.L230kg
S.W.L On Extension113kg
Max. Occupants2/2
Gradeability25%
Travel Speed(Stowed)4.5km/h
Travel Speed(Raised)0.6km/h
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed35/45sec
Overall Weight1940kg
Hydraulic Tank11L
Battery24V/185Ah
Charger24V/30A
Driving Motor2×15VAC/0.5kW
Lifting Motor15VAC/3.0kW
Power SourceElectric
