JCPT1212ACElectric Slab Scissor LiftELECTRIC

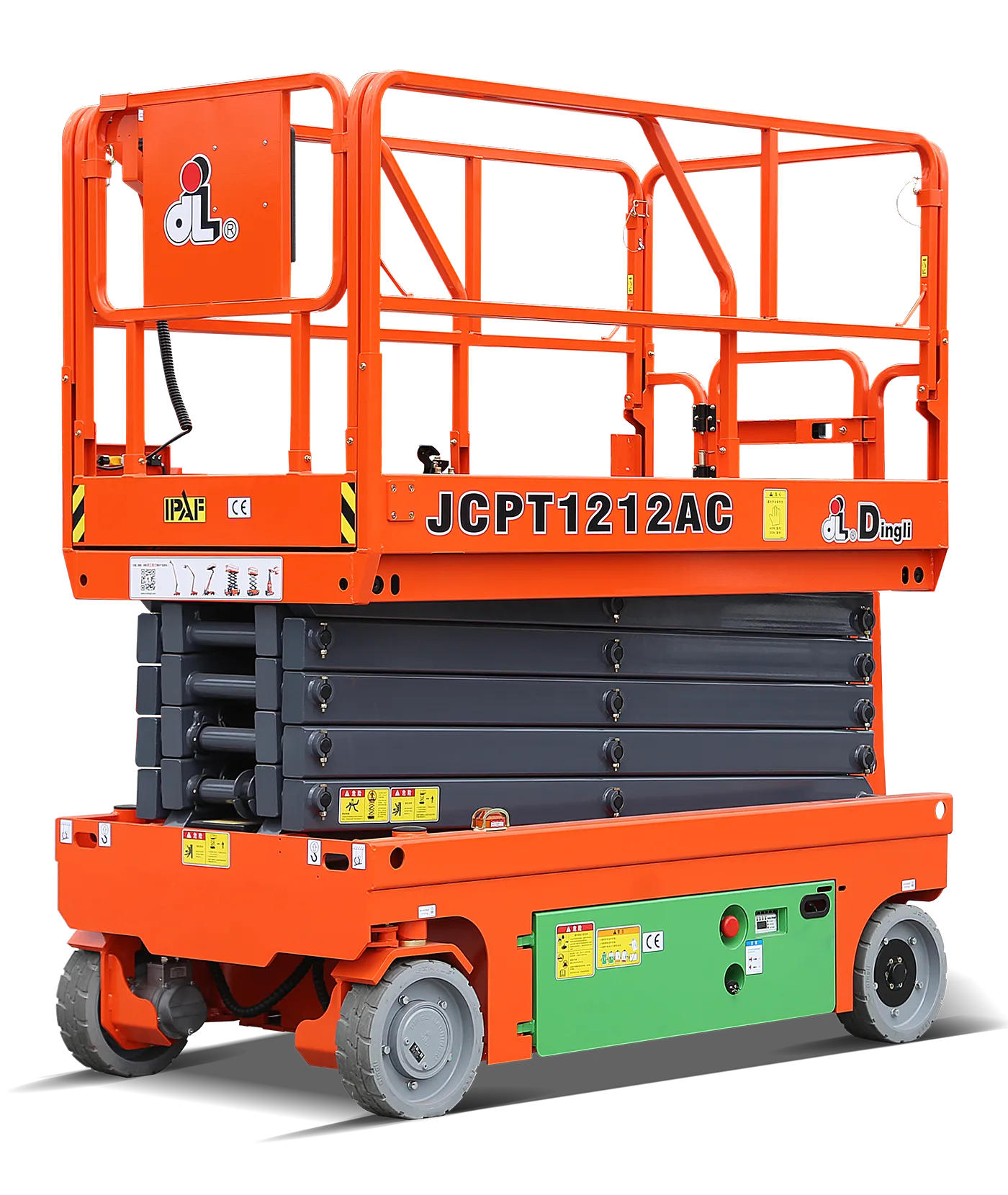

JCPT1212AC Electric Slab Scissor Lift
12.00m/39ft 4inmWorking Height
2/1Occupants
Description
Engineered for operational efficiency and enhanced safety, JCPT1212AC is battery driven and equipped with a fully sealed AC system to drive and lift. Waterproof and maintenance-free, this robust scissor lift is suitable for a wide range of maintenance tasks.
Key Features
- Automatic pothole protection system
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/200Ah high-capacity battery pack
Specifications
Max. Working Height12.00m/39ft 4in
Max. Platform Height10.00m/32ft 10in
Overall Length(With Ladder)2.48m/8ft 2in
Overall Width1.15m/3ft 9in
Overall Height(Rails Up)2.49m/8ft 2in
Overall Height(Rails Down)1.96m/6ft 5in
Platform Size(Length×Width)2.27m×1.12m/7ft 5in×3ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase1.87m/6ft 2in
Turning Radius(Inside/Outside)0m/2.20m / 0in/7ft 3in
Tyresφ381×127mm
S.W.L320kg/705lb
S.W.L On Extension113kg/249lb
Max. Occupants2/1
Gradeability25%
Travel Speed(Stowed)5.0km/h / 3.10mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed54/45sec
Overall Weight(Lead-acid Battery)3060kg/6746lb
Overall Weight(Lithium Battery)3000kg/6613lb
Hydraulic Tank20L/5gal 3pt
Battery24V/200Ah
Charger24V/30A
Driving Motor2×15VAC/0.87kW
Lifting Motor15VAC/3.5kW
Power SourceElectric
