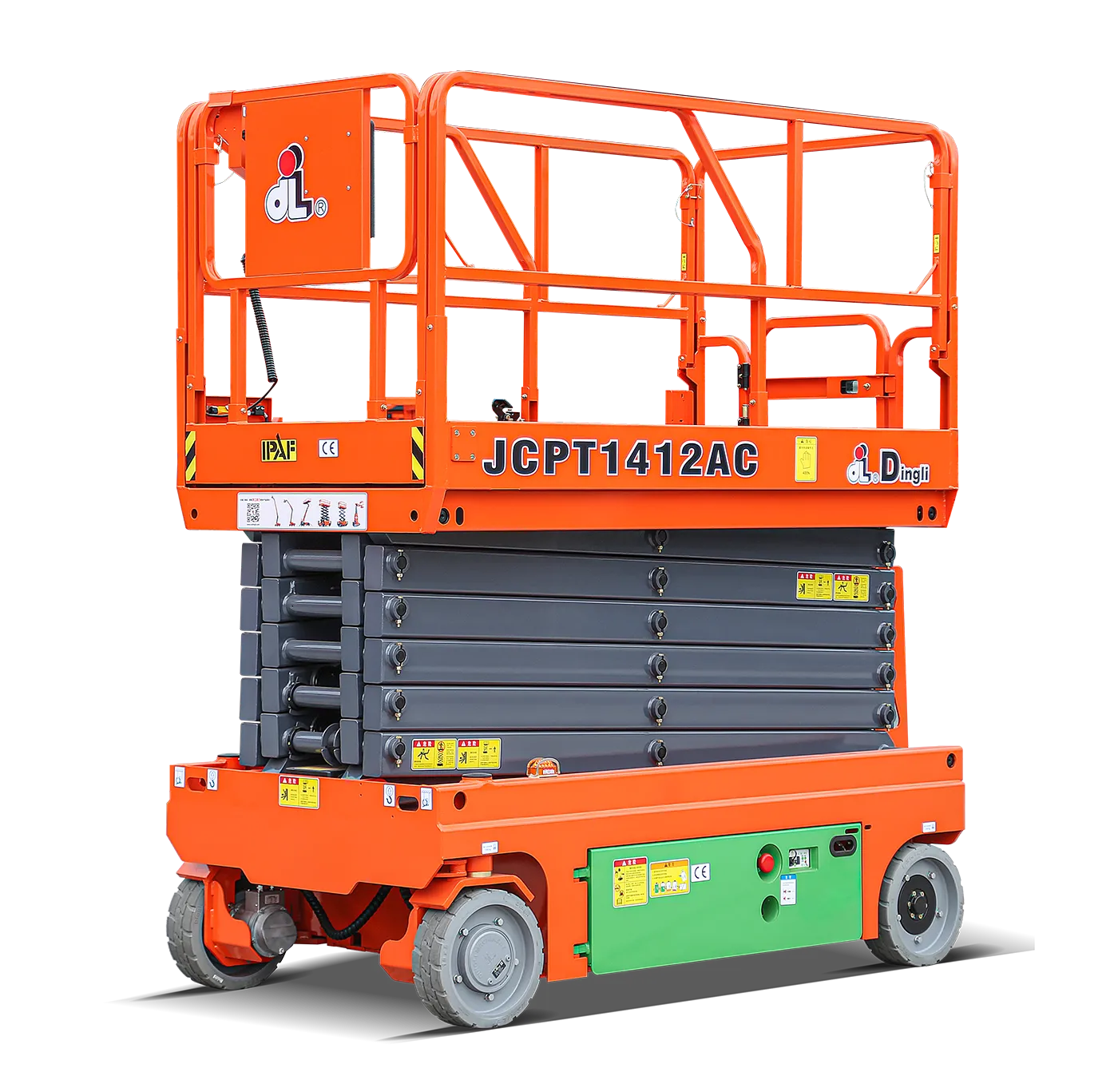

JCPT1412AC Electric Slab Scissor Lift
13.80m/45ft 3inmWorking Height
3/0Occupants
Description
Automatic pothole protection system Unidirectional extension platform for easy maneuvering and access to the operational point. Automatic display of fault code to reduce downtime Equipped with 24V/240Ah high-capacity battery pack
Key Features
- Automatic pothole protection system
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/240Ah high-capacity battery pack
Specifications
Max. Working Height13.80m/45ft 3in
Max. Platform Height11.80m/38ft 9in
Overall Length(With Ladder)2.48m/8ft 2in
Overall Width1.19m/3ft 11in
Overall Height(Rails Up)2.62m/8ft 7in
Overall Height(Rails Down)2.09m/6ft 10in
Platform Size(Length×Width)2.27m×1.12m/7ft 5in×3ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase1.87m/6ft 2in
Turning Radius(Inside/Outside)0m/2.20m / 0in/7ft 3in
Tyresφ381×127mm
S.W.L320kg/705lb
S.W.L On Extension113kg/249lb
Max. Occupants3/0
Gradeability25%
Travel Speed(Stowed)5.0km/h / 3.10mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed55/40sec
Overall Weight(Lead-acid Battery)2990kg/6591lb
Overall Weight(Lithium Battery)2900kg/6393lb
Hydraulic Tank20L/5gal 3pt
Battery24V/240Ah
Charger24V/30A
Driving Motor2×15VAC/0.87kW
Lifting Motor15VAC/3.5kW
Power SourceElectric
