JCPT1418DCElectric Slab Scissor LiftELECTRIC

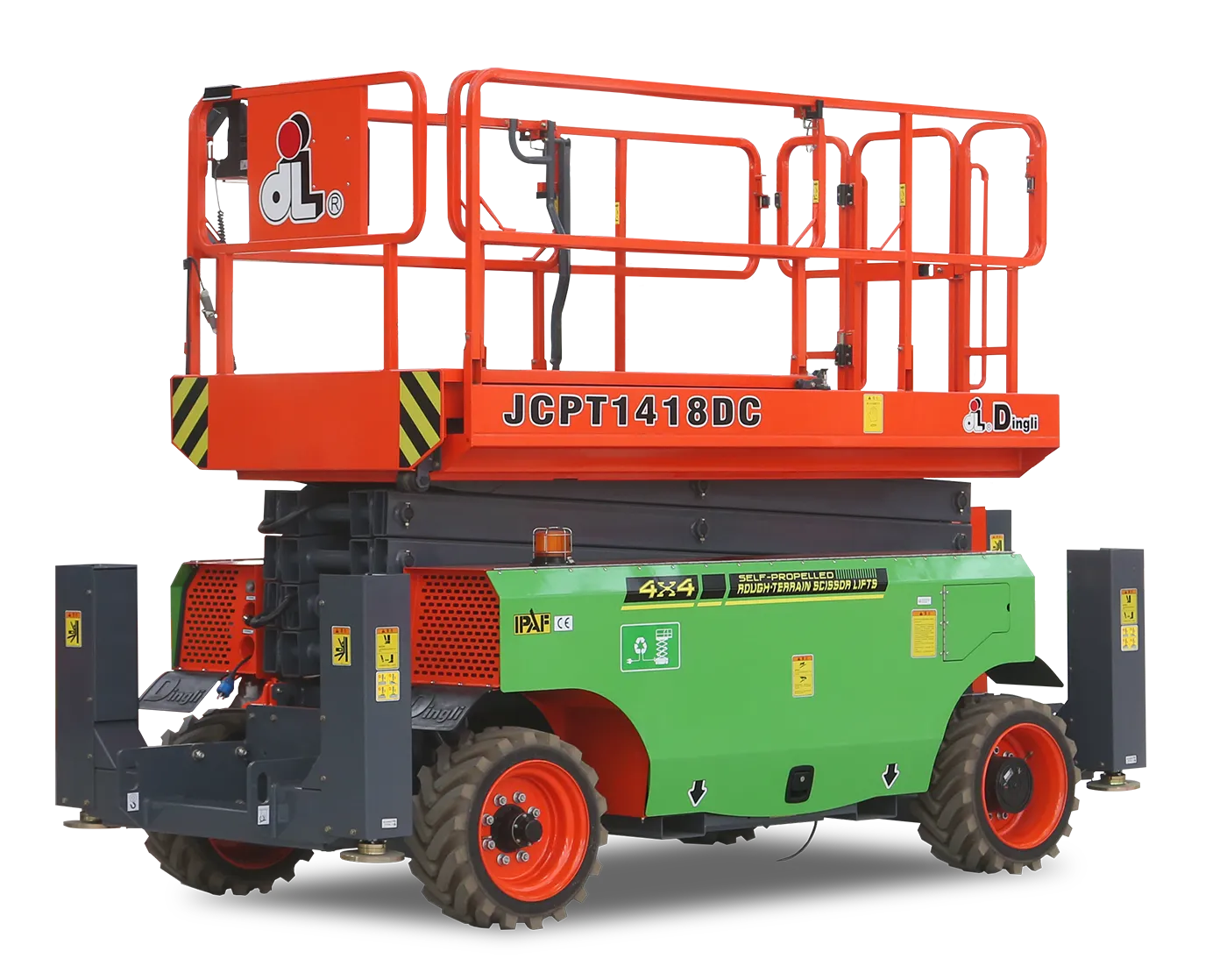

JCPT1418DC Electric Slab Scissor Lift
14.30m/46ft 11inmWorking Height
3/2Occupants
Description
Equipped with strong power and a large deck, this no noise, zero emission scissor lift is robust and reliable. Engineered to make light work of elevation even in environmentally demanding working conditions, this robust scissor lift is perfect for a range of construction and maintenance tasks.
Key Features
- Drivable at full height with a large load of 363kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 48V/320Ah high-capacity battery pack
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height14.30m/46ft 11in
Max. Platform Height12.30m/40ft 4in
Overall Length(Without Outriggers)3.19m/10ft 6in
Overall Length(With Outriggers)3.84m/12ft 7in
Overall Width1.76m/5ft 9in
Overall Height(Rails Up)2.74m/9ft
Overall Height(Rails Down)1.97m/6ft 6in
Platform Size(Length×Width)2.88m×1.52m/9ft 5in×5ft
Platform Extension Size1.43m/4ft 8in
Ground Clearance(Stowed/Raised)0.24m/9in
Wheelbase2.29m/7ft 6in
Turning Radius(Inside/Outside)2.15m/4.85m / 7ft 1in/15ft 11in
Tyres26×12-16.5
S.W.L363kg/800lb
S.W.L On Extension136kg/299lb
Max. Occupants3/2
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)0.45km/h / 0.28mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed45/46sec
Overall Weight(Without Outriggers)5150kg/11353lb
Overall Weight(With Outriggers)5150kg/11353lb
Hydraulic Tank71L/18gal 7pt
Battery48V/320Ah
Charger48V/35A
Driving Motor2×32V/3.3kW
Lifting Motor48VDC/3.8kW
Power SourceElectric
