JCPT1523DCBElectric Slab Scissor LiftELECTRIC

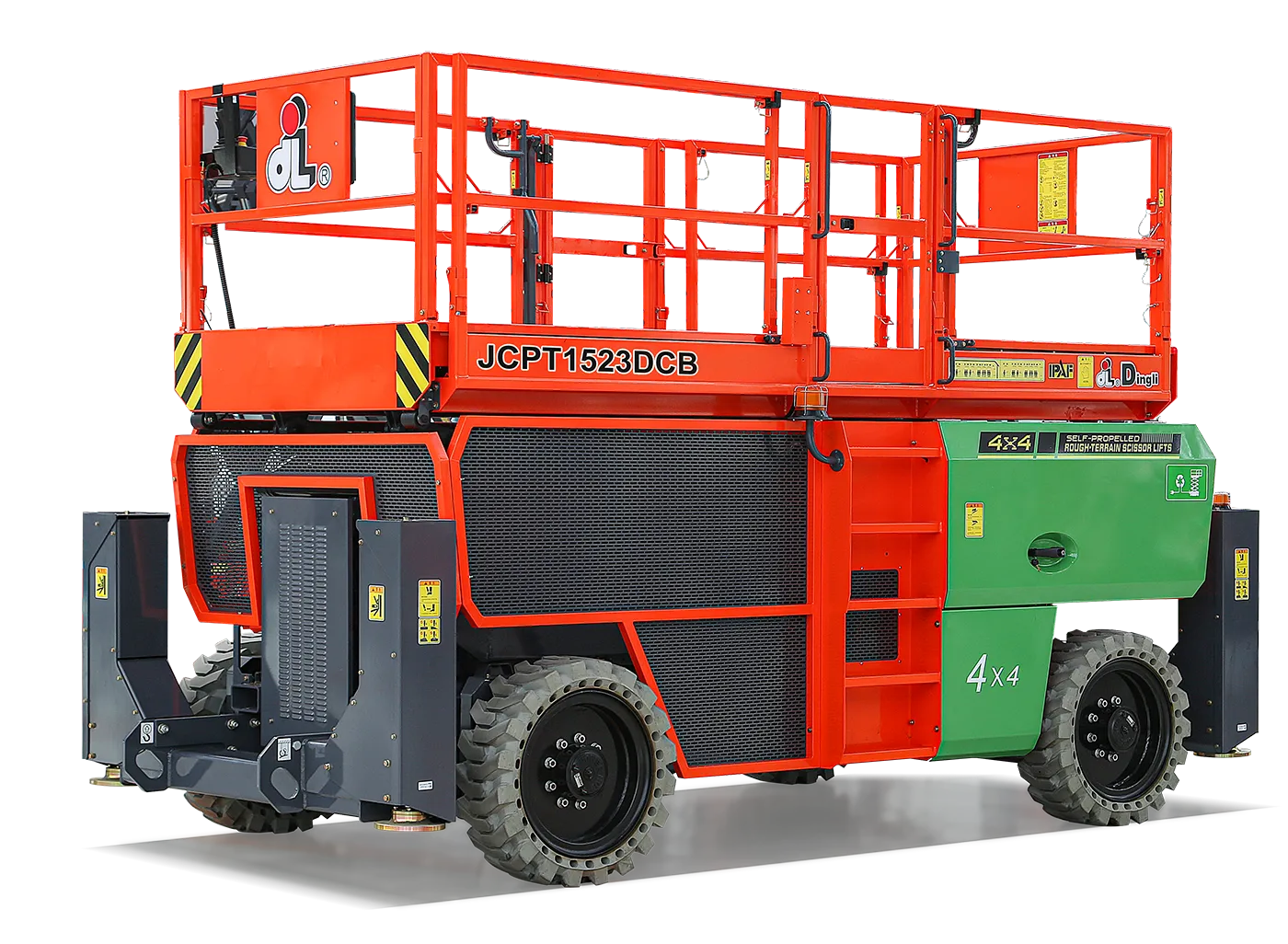

JCPT1523DCB Electric Slab Scissor Lift
15.00m/49ft 3inmWorking Height
7Occupants
Description
Equipped with strong off-road ability, JCPT1523DCB offers the flexibility of a large extension working platform and a wide working range. Compact and stable, this scissor lift comes with a folding guard and offers good stability to perform a variety of heavy-duty tasks.
Key Features
- Automatic hydraulic levelling outriggers
- 40% grade ability
- 4 Wheel driving and steering for flexibility
- Equipped with 48V/450Ah high-capacity battery pack
Specifications
Max. Working Height15.00m/49ft 3in
Max. Platform Height13.00m/42ft 8in
Overall Length(Without Outriggers)3.98m/13ft 1in
Overall Length(With Outriggers)4.88m/16ft
Overall Width2.29m/7ft 6in
Overall Height(Rails Up)2.98m/9ft 9in
Overall Height(Rails Down)2.28m/7ft 6in
Platform Size(Length×Width)3.98m×1.83m/13ft 1in×6ft
Platform Extension Size1.43m/1.16m / 4ft 8in/3ft 10in
Ground Clearance(Stowed/Raised)0.30m/1ft
Wheelbase2.86m/9ft 5in
Turning Radius(Inside/Outside)2.35m/5.20m / 7ft 9in/17ft 1in
Tyres33×12-20
S.W.L680kg/1499lb
S.W.L On Extension227kg/500lb
Max. Occupants7
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)1.0km/h / 0.62mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed70/55sec
Overall Weight(Without Outriggers)7300kg/16093lb
Overall Weight(With Outriggers)8200kg/18077lb
Hydraulic Tank130L/34gal3pt
Battery48V/450Ah
Charger48V/60A
Driving Motor4×32V/3.3kW
Lifting Motor2×48V/8.0kW
Power SourceElectric
