JCPT1612HAElectric Slab Scissor LiftELECTRIC

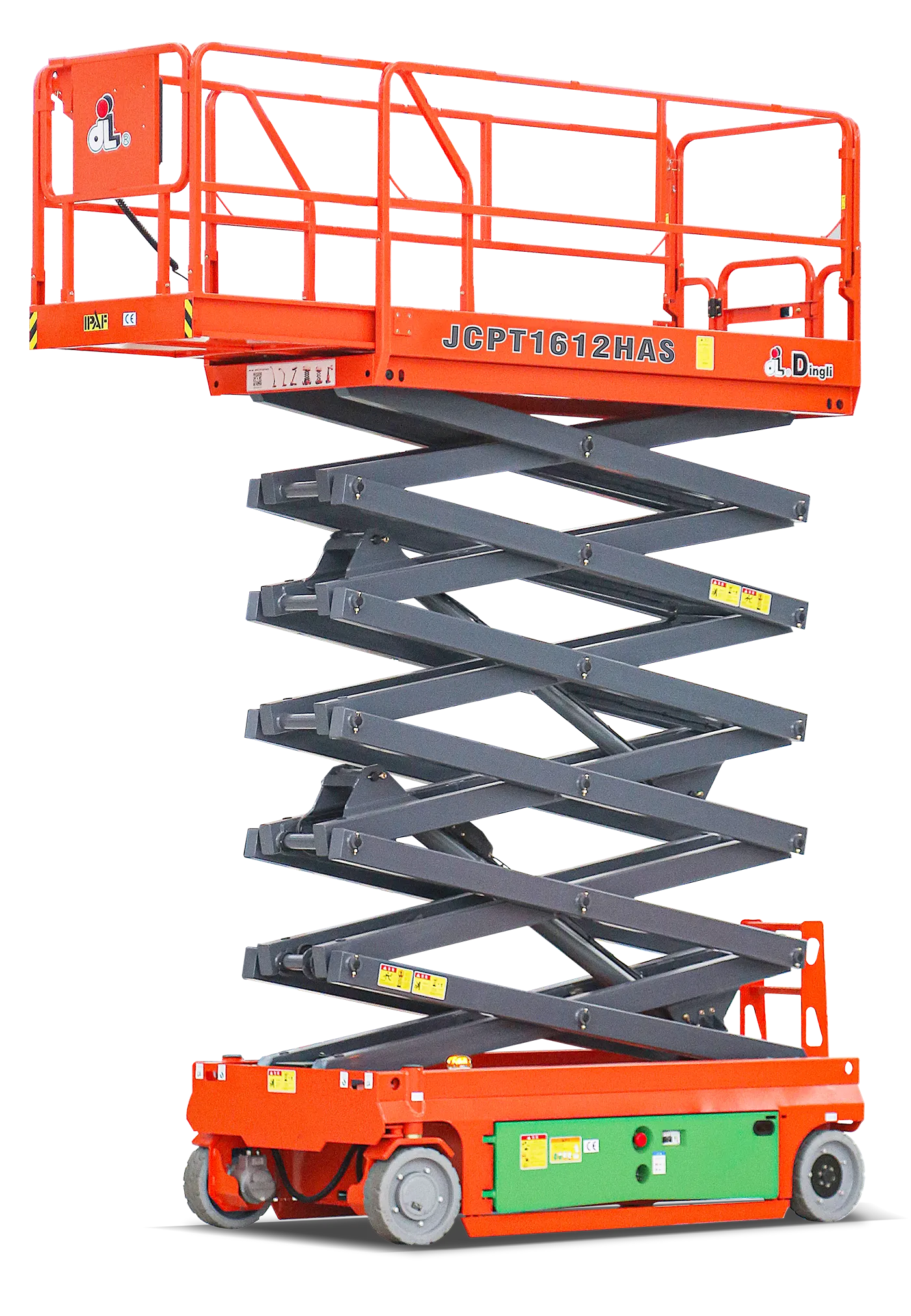

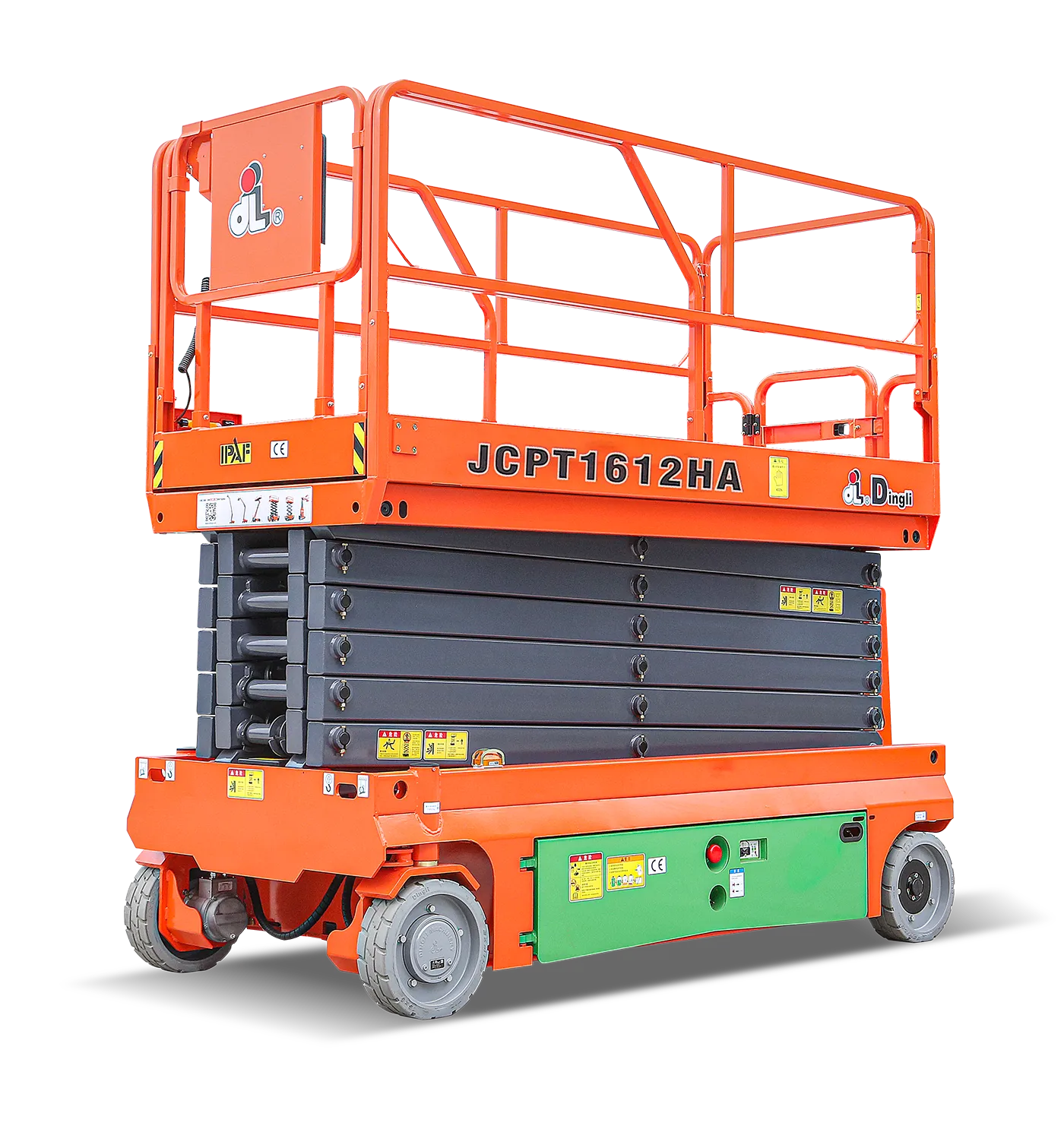

JCPT1612HA Electric Slab Scissor Lift
15.70m/51ft 6inmWorking Height
2/0Occupants
Description
Equipped with an AC motor enforced hydraulic pump for driving and lifting, this compact scissor lift is maintenance-free and versatile. Engineered for enhanced safety and reliability, this robust scissor lift is suitable for a wide range of maintenance tasks.
Key Features
- Maintenance-free system
- Overall width is 2.62m
- Automatic pothole protection system
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/240Ah high-capacity battery pack and a hydraulic tank
Specifications
Max. Working Height15.70m/51ft 6in
Max. Platform Height13.70m/44ft 11in
Overall Length(With Ladder)2.84m/9ft 4in
Overall Width2.62m/8ft 7in
Overall Height(Rails Up)2.09m/6ft 10in
Overall Height(Rails Down)1.83m/6ft
Platform Size(Length×Width)2.64m×1.12m/8ft 8in×3ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase2.22m/7ft 3in
Turning Radius(Inside/Outside)0m/2.65m / 0in/8ft 8in
Tyresφ381×127mm
S.W.L250kg/551lb
S.W.L On Extension113kg/249lb
Max. Occupants2/0
Gradeability25%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed72/67sec
Overall Weight(Lead-acid Battery)3330kg/7341lb
Overall Weight(Lithium Battery)3240kg/7142lb
Hydraulic Tank20L/5gal 3pt
Battery24V/240Ah
Charger24V/30A
Lifting Motor15VAC/3.0kW
Power SourceHydraulic
