JCPT1712DCLElectric Slab Scissor LiftELECTRIC

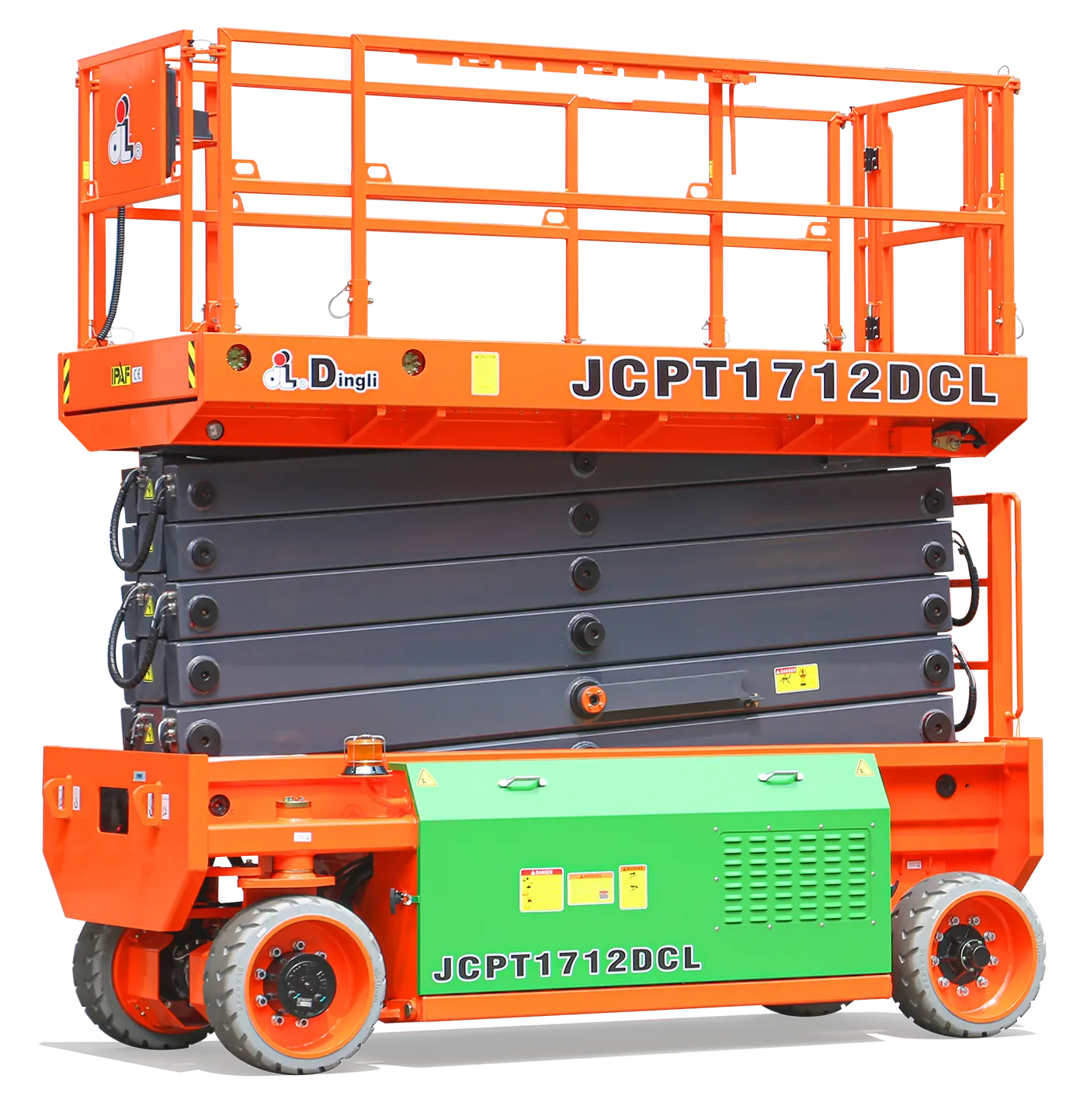

JCPT1712DCL Electric Slab Scissor Lift
17.20m/56ft 5inmWorking Height
2/0Occupants
Description
Drivable at full height with a large load of 500kg Automatic self-levelling for stability 4 Wheel driving and steering for flexibility Equipped with 48V/320Ah high-capacity battery pack
Key Features
- Drivable at full height with a large load of 500kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 48V/320Ah high-capacity battery pack
Specifications
Max. Working Height17.20m/56ft 5in
Max. Platform Height15.20m/49ft 10in
Overall Length(With Outriggers)3.36m/11ft
Overall Width1.25m/4ft 1in
Overall Height(Rails Up)3.24m/10ft 8in
Overall Height(Rails Down)2.47m/8ft 1in
Platform Size(Length×Width)3.04m×1.17m/10ft×3ft 10in
Platform Extension Size1.20m/3ft 11in
Ground Clearance(Stowed/Raised)0.15m/0.025m / 6in/1in
Wheelbase2.49m/8ft 2in
Turning Radius(Inside/Outside)0.60m/3.00m / 2ft/9ft 10in
Tyres22×9×16
S.W.L500kg/1102lb
S.W.L On Extension500kg/1102lb
Max. Occupants2/0
Gradeability30%
Travel Speed(Stowed)4.5km/h / 2.79mph
Travel Speed(Raised)0.4km/h / 0.25mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed65/68sec
Overall Weight(Without Outriggers)6280kg/13845lb
Hydraulic Tank45L/11.7gal
Battery48V/320Ah
Charger48V/60A
Driving Motor2×32V/3.3kW
Lifting Motor48V/10.0kW
Power SourceElectric
