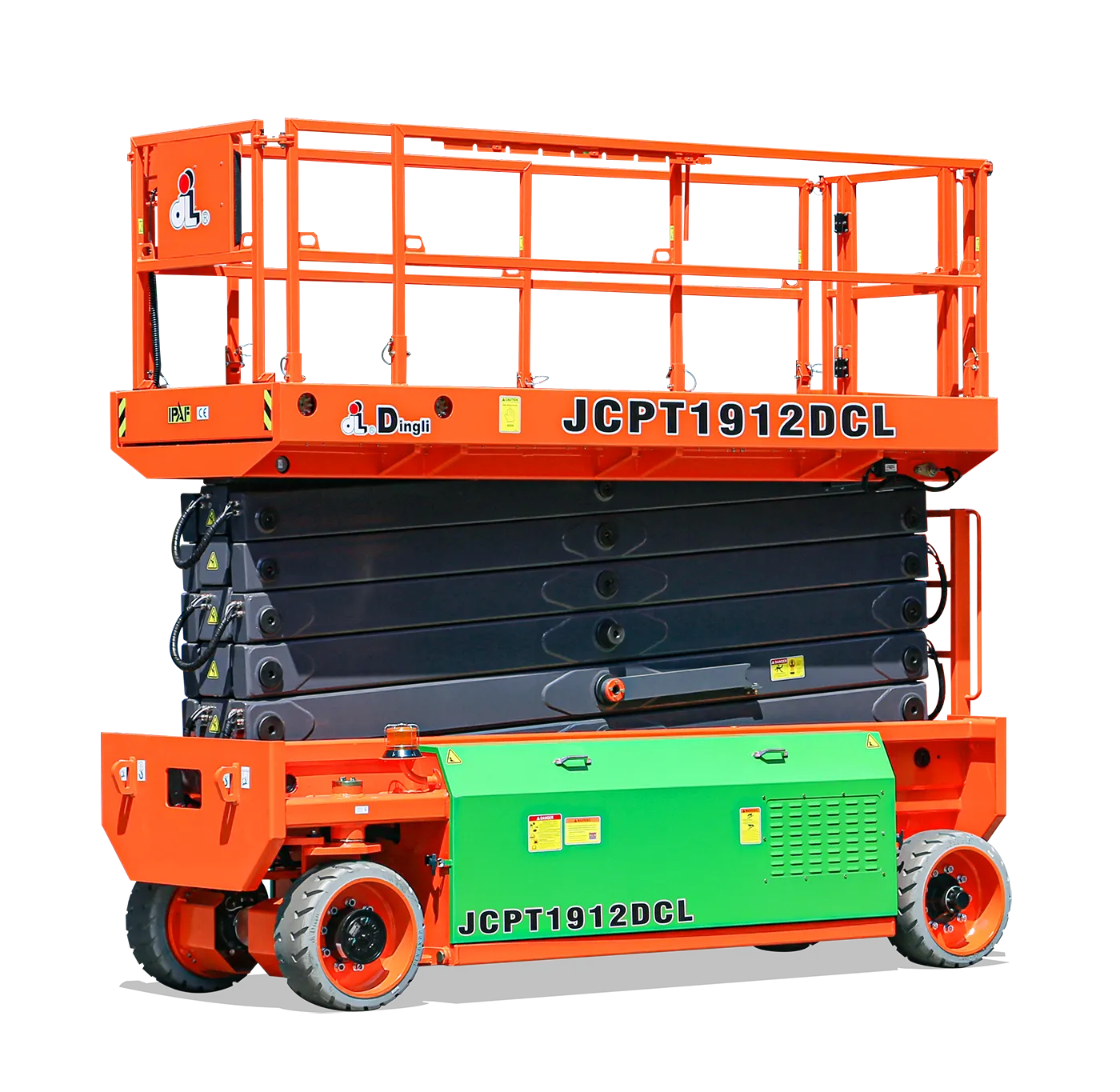

JCPT1912DCL Electric Slab Scissor Lift
19.00m/62ft 4inmWorking Height
2/0Occupants
Description
Drivable at full height with a large load of 500kg Automatic self-levelling for stability 4 Wheel driving and steering for flexibility Equipped with 48V/360Ah high-capacity battery pack
Key Features
- Drivable at full height with a large load of 500kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 48V/360Ah high-capacity battery pack
Specifications
Max. Working Height19.00m/62ft 4in
Max. Platform Height17.00m/55ft 9in
Overall Length(With Outriggers)3.76m/12ft 4in
Overall Width1.25m/4ft 1in
Overall Height(Rails Up)3.24m/10ft 8in
Overall Height(Rails Down)2.47m/8ft 1in
Platform Size(Length×Width)3.44m×1.17m/11ft 3in×3ft 10in
Platform Extension Size1.20m/3ft 11in
Ground Clearance(Stowed/Raised)0.15m/0.025m / 6in/1in
Wheelbase2.89m/9ft 6in
Turning Radius(Inside/Outside)1.00m/3.50m / 3ft 3in/11ft 6in
Tyres22×9×16
S.W.L500kg/1102lb
S.W.L On Extension500kg/1102lb
Max. Occupants2/0
Gradeability30%
Travel Speed(Stowed)4.5km/h / 2.79mph
Travel Speed(Raised)0.4km/h / 0.25mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed70/76sec
Overall Weight(With Outriggers)7140kg/15741lb
Hydraulic Tank50L/13.2gal
Battery48V/360Ah
Charger48V/60A
Driving Motor2×32V/3.3kW
Lifting Motor48V/12.0kW
Power SourceElectric
