JCPT2212DCElectric Slab Scissor LiftELECTRIC

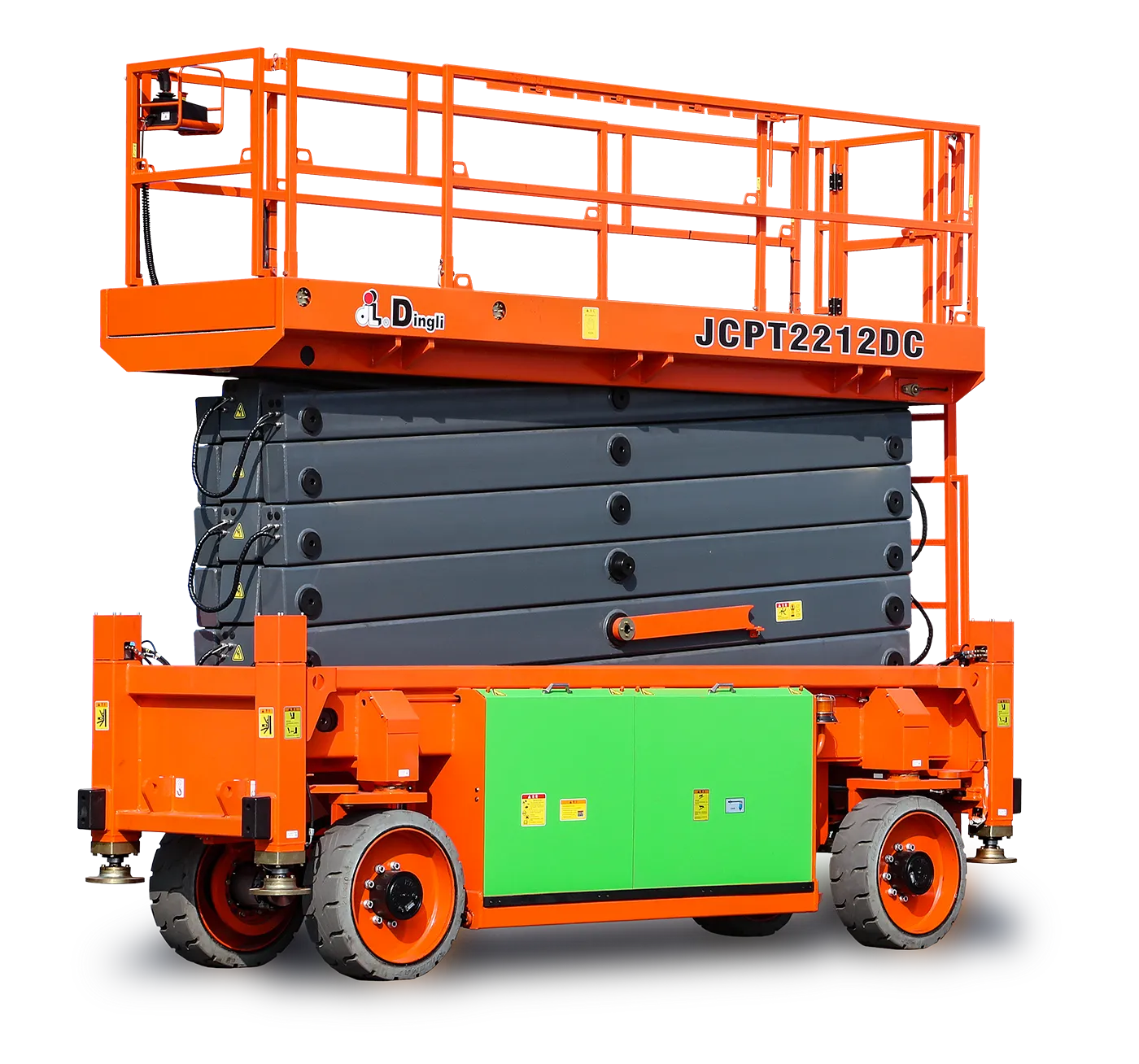

JCPT2212DC Electric Slab Scissor Lift
22.00m/72ft 2inmWorking Height
2Occupants
Description
Drivable at full height with a large load of 750kg Automatic self-levelling for stability 4 Wheel driving and steering for flexibility Equipped with 48V/630Ah high-capacity battery pack
Key Features
- Drivable at full height with a large load of 750kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 48V/630Ah high-capacity battery pack
Specifications
Max. Working Height22.00m/72ft 2in
Max. Platform Height20.00m/65ft 7in
Overall Length(With Outriggers)4.72m/15ft 6in
Overall Width1.25m/4ft 1in
Overall Height(Rails Up)3.82m/12ft 6in
Overall Height(Rails Down)2.99m/9ft 10in
Platform Size(Length×Width)4.30m×1.19m/14ft 1in×3ft 11in
Platform Extension Size1.80m/5ft 11in
Ground Clearance(Stowed/Raised)0.20m/0.02m / 8in/1in
Wheelbase4.87m/16ft
Turning Radius(Inside/Outside)1.60m/2.30m / 5ft 3in/7ft 7in
Tyres28×10-22
S.W.L750kg/1653lb
S.W.L On Extension750kg/1653lb
Max. Occupants2
Gradeability25%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.5km/h / 0.31mph
Max. Working Slope1°(0°)
Up/Down Speed85/75sec
Overall Weight(With Outriggers)12350kg/27227lb
Hydraulic Tank130L/34gal 3pt
Battery48V/630Ah
Charger48V/60A
Driving Motor4×32V/3.3kW
Lifting Motor2×48V/8.0kW
Power SourceElectric
