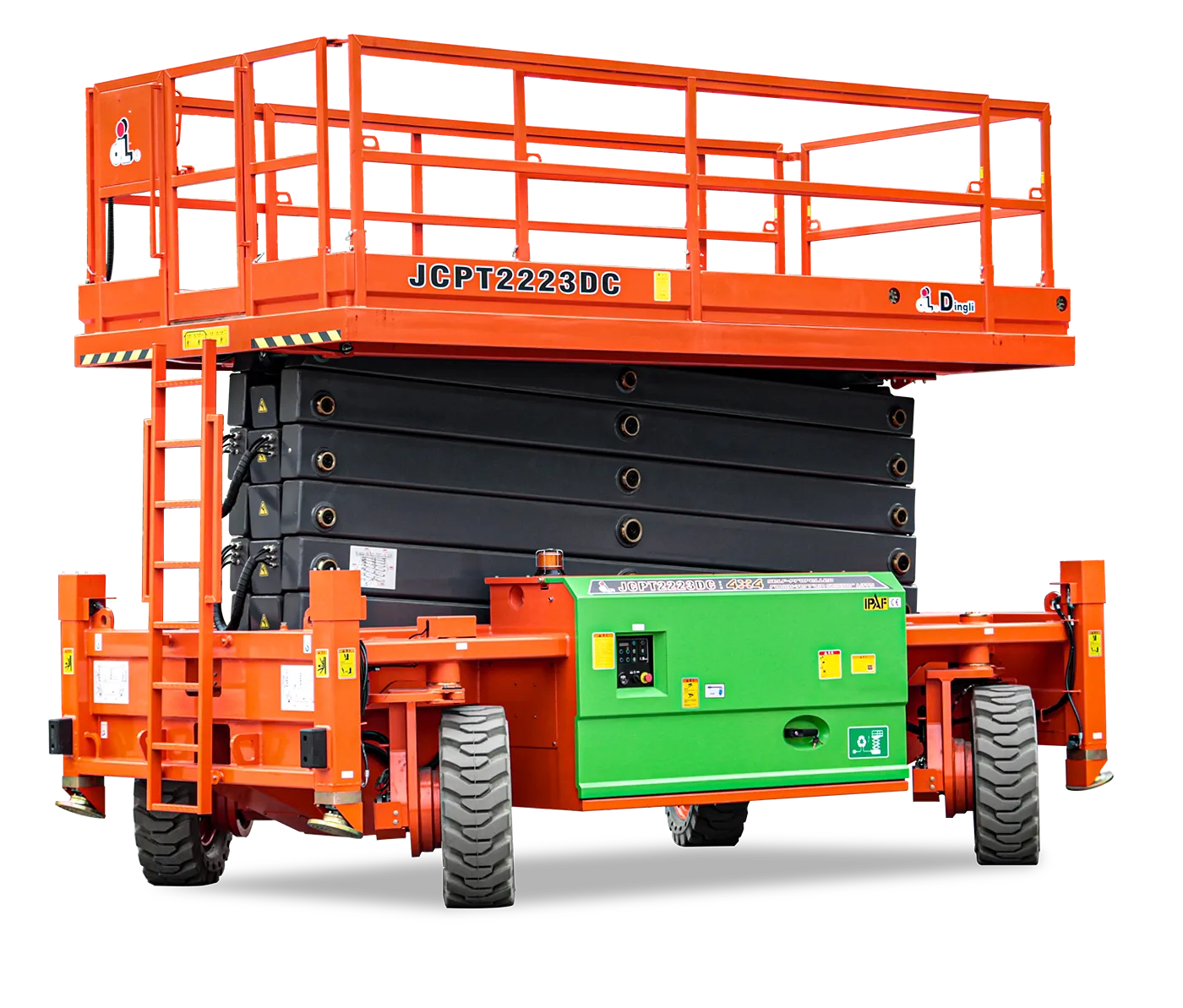

JCPT2223DCElectric Slab Scissor LiftELECTRIC
JCPT2223DC Electric Slab Scissor Lift
22.00m/72ft 2inmWorking Height
4Occupants
Description
Drivable at full height with a large load of 750kg Automatic self-levelling for stability 4 Wheel driving and steering for flexibility Equipped with 48V/630Ah high-capacity battery pack One key extension large deck that can be stopped and used at any extension point
Key Features
- Drivable at full height with a large load of 750kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 48V/630Ah high-capacity battery pack
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height22.00m/72ft 2in
Max. Platform Height20.00m/65ft 7in
Overall Length(With Outriggers)4.95m/16ft 3in
Overall Width2.46m/8ft 1in
Overall Height(Rails Up)3.86m/12ft 8in
Overall Height(Rails Down)3.00m/9ft 10in
Platform Size(Length×Width)4.59m×2.25m/15ft 2in×7ft 5in
Platform Extension Size2.70m/8ft 10in
Ground Clearance(Stowed/Raised)0.40m/1ft 4in
Wheelbase3.30m/10ft 10in
Turning Radius(Inside/Outside)1.25m/3.40m / 4ft 1in/11ft 2in
Tyres36×14-20
S.W.L750kg/1653lb
S.W.L On Extension750kg/1653lb
Max. Occupants4
Gradeability30%
Travel Speed(Stowed)5.0km/h / 3.10mph
Travel Speed(Raised)0.4km/h / 0.25mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed90/75sec
Overall Weight(With Outriggers)13400kg/29541lb
Hydraulic Tank150L/39gal 6pt
Battery48V/630Ah
Charger48V/60A
Driving Motor4×32V/3.3kW
Lifting Motor2×48V/10.0kW
Power SourceElectric
