JCPT2825DCElectric Slab Scissor LiftELECTRIC

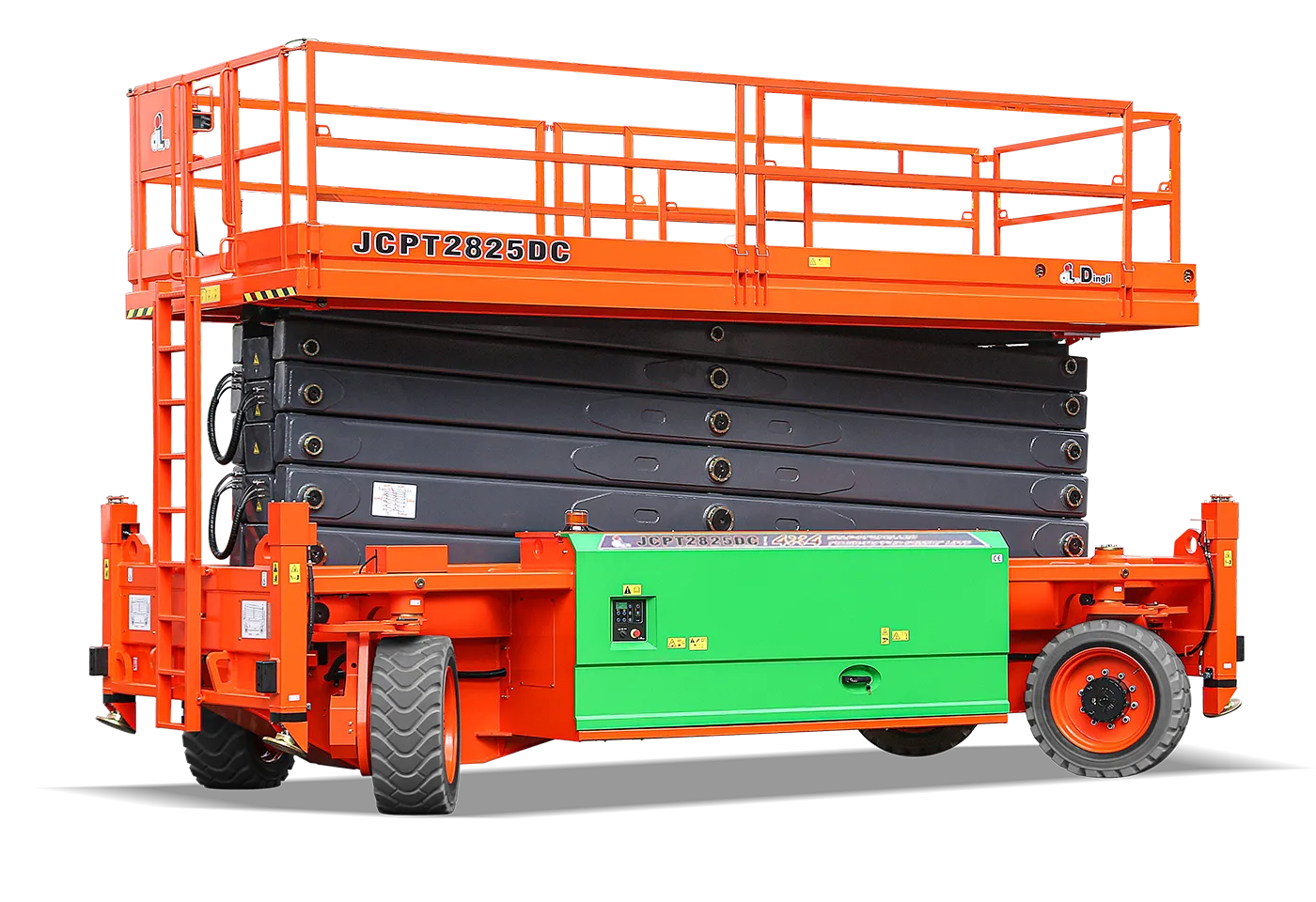

JCPT2825DC Electric Slab Scissor Lift
28.00m/91ft 10inmWorking Height
4Occupants
Description
Engineered for strength and efficient performance, JCPT2825DC is perfectly suited for environmentally demanding working conditions. This no noise, zero emission scissor lift is robust and a wide range of construction and maintenance tasks.
Key Features
- Drivable at full height with a large load of 1000kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 80V/520Ah high-capacity battery pack
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height28.00m/91ft 10in
Max. Platform Height26.00m/85ft 4in
Overall Length(With Outriggers)5.96m/19ft 7in
Overall Width2.50m/8ft 2in
Overall Height(Rails Up)4.13m/13ft 7in
Overall Height(Rails Down)3.19m/10ft 6in
Platform Size(Length×Width)5.48m×2.45m/18ft×8ft
Platform Extension Size2.10m/6ft 11in
Ground Clearance(Stowed/Raised)0.23m/9in
Wheelbase4.10m/13ft 5in
Turning Radius(Inside/Outside)3.50m/6.00m / 11ft 6in/19ft 8in
Tyres355/55D625
S.W.L1000kg/2204lb
S.W.L On Extension1000kg/2204lb
Max. Occupants4
Gradeability30%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.3km/h / 0.19mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed130/100sec
Overall Weight(With Outriggers)19750kg/43541lb
Hydraulic Tank260L/68gal 6pt
Battery80V/520Ah
Charger80V/80A
Driving Motor4×53V/2kW
Lifting Motor53V/28kW
Power SourceElectric
