JCPT3214DCElectric Slab Scissor LiftELECTRIC

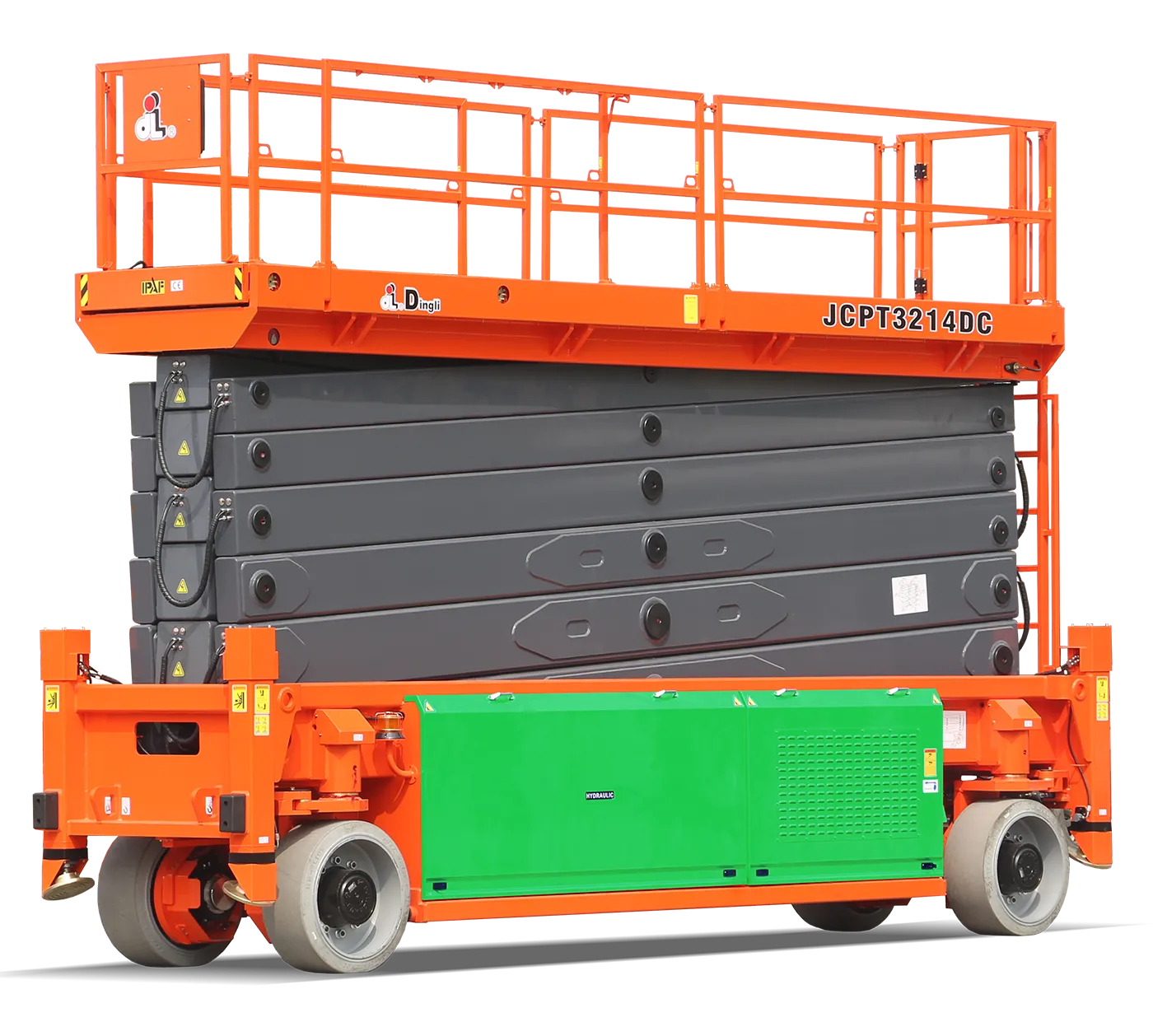

JCPT3214DC Electric Slab Scissor Lift
32.00m/105ftmWorking Height
2Occupants
Description
JCPT3214DC is a no noise, zero emissions, and environmentally friendly scissor lift that is specifically designed for rough terrain performance. With an overall width of 1.40m, this large scissor lift ensures good passability and multi-purpose versatility.
Key Features
- Drivable at full height with a large load of 750kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 80V/520Ah high-capacity battery pack.
Specifications
Max. Working Height32.00m/105ft
Max. Platform Height30.00m/98ft 5in
Overall Length(With Outriggers)6.41m/21ft
Overall Width1.40m/4ft 7in
Overall Height(Rails Up)4.16m/13ft 8in
Overall Height(Rails Down)3.17m/10ft 5in
Platform Size(Length×Width)5.85m×1.20m/19ft 2in×3ft 11in
Platform Extension Size1.90m/6ft 3in
Ground Clearance(Stowed/Raised)0.19m/0.02m / 8in/1in
Wheelbase4.87m/16ft
Turning Radius(Inside/Outside)2.60m/3.50m / 8ft 6in/11ft 6in
Tyres28×12-22
S.W.L750kg/1653lb
S.W.L On Extension750kg/1653lb
Max. Occupants2
Gradeability30%
Travel Speed(Stowed)1.5km/h / 0.93mph
Travel Speed(Raised)0.1km/h / 0.06mph
Max. Working Slope1°(0°)
Up/Down Speed160/105sec
Overall Weight(With Outriggers)22200kg/48942lb
Hydraulic Tank220L/58gal 1pt
Battery80V/520Ah
Charger80V/80A
Driving Motor4×53V/2kW
Lifting Motor53V/28kW
Power SourceElectric
