JCPT3225DCElectric Slab Scissor LiftELECTRIC

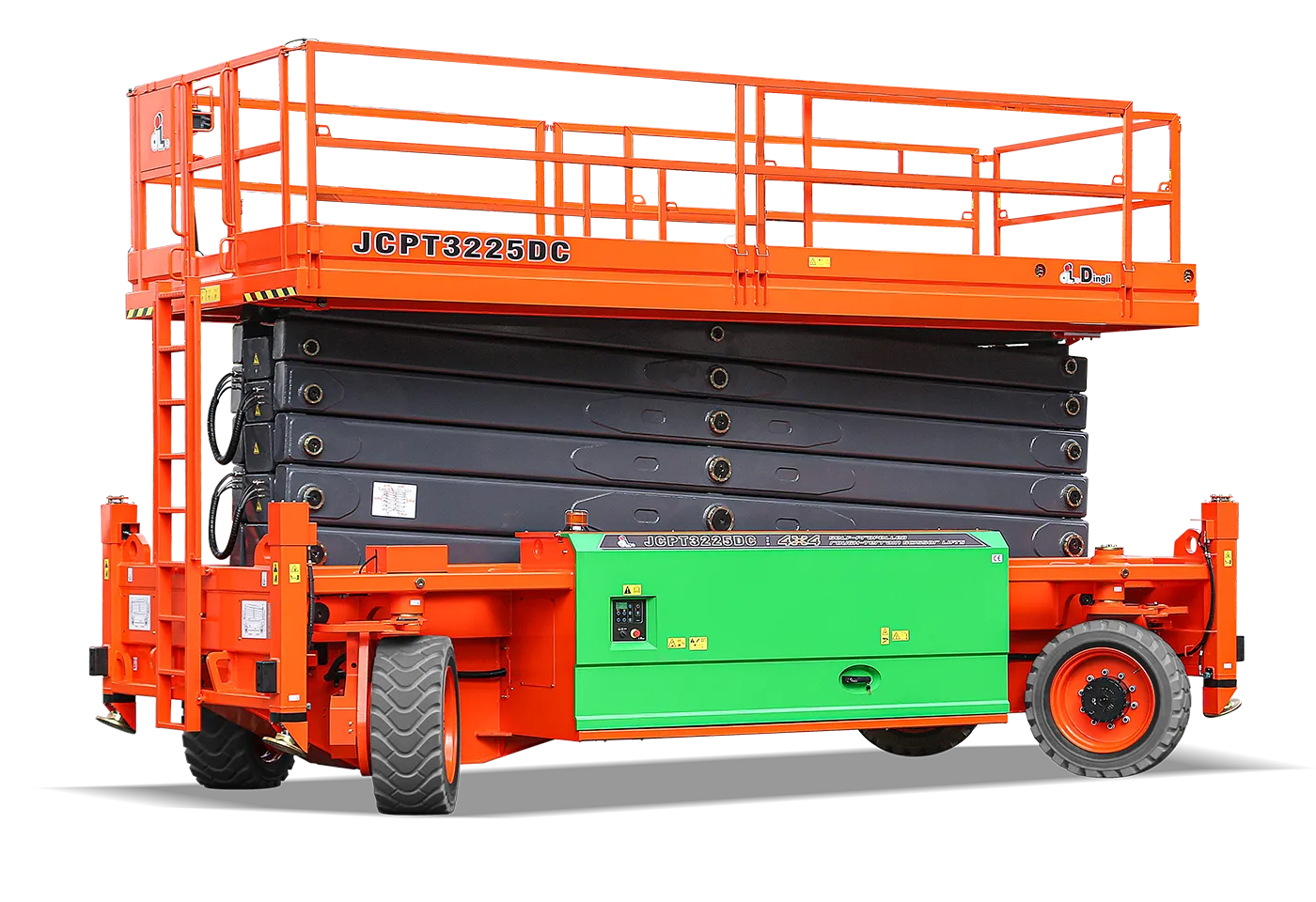

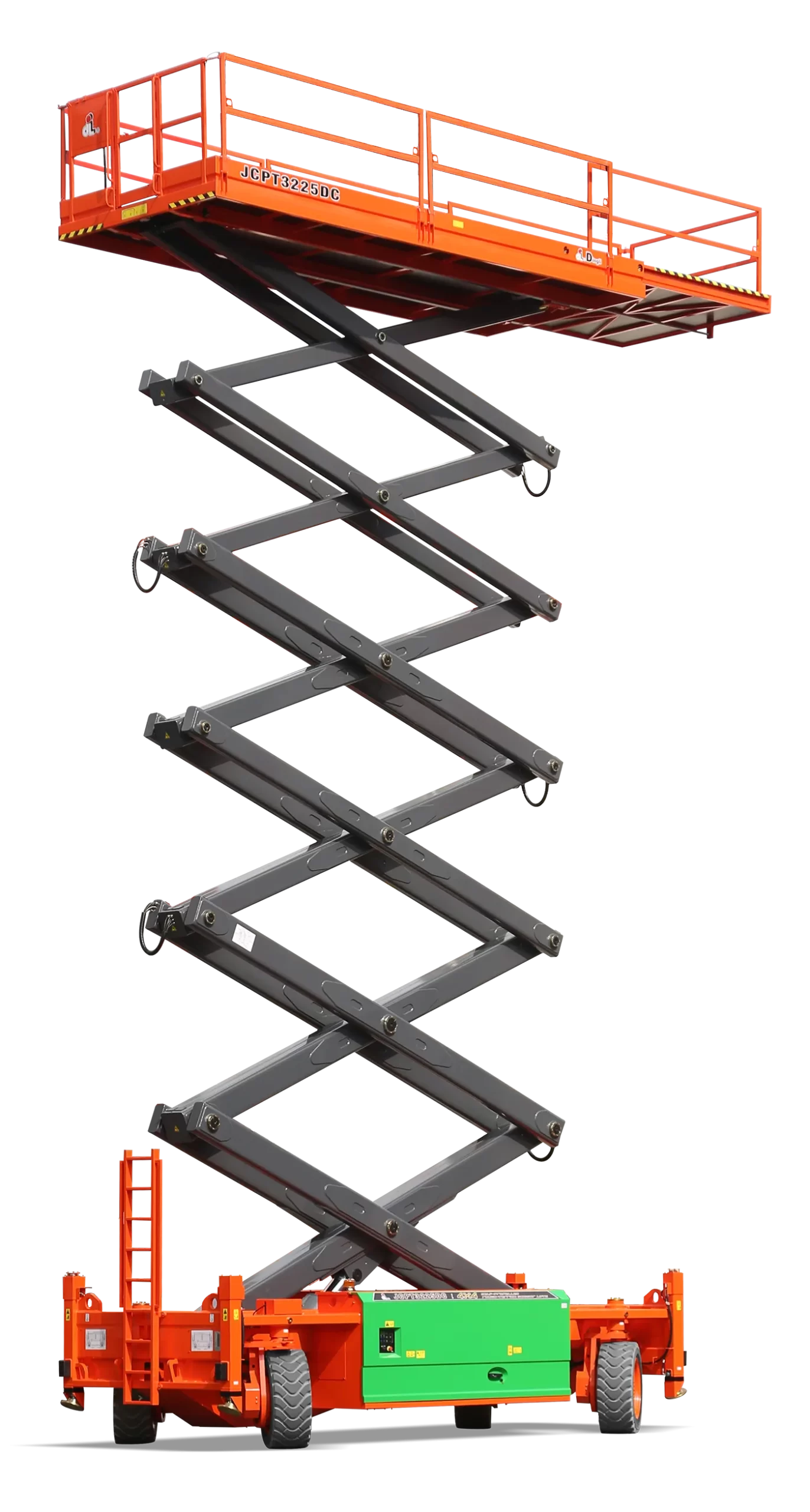

JCPT3225DC Electric Slab Scissor Lift
32.00m/105ftmWorking Height
4Occupants
Description
JCPT322DC is a no noise, zero emissions, and environmentally friendly scissor lift that is specifically designed for rough terrain performance. Robust and reliable, this large scissor lift is suitable for all construction, maintenance, and heavy-duty tasks.
Key Features
- Drivable at full height with a large load of 1000kg
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Equipped with 80V/520Ah high-capacity battery pack
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height32.00m/105ft
Max. Platform Height30.00m/98ft 5in
Overall Length(With Outriggers)6.73m/22ft 1in
Overall Width2.55m/8ft 4in
Overall Height(Rails Up)4.13m/13ft 7in
Overall Height(Rails Down)3.19m/10ft 6in
Platform Size(Length×Width)6.20m×2.45m/20ft 4in×8ft
Platform Extension Size2.10m/6ft 11in
Ground Clearance(Stowed/Raised)0.20m/8in
Wheelbase4.86m/15ft 11in
Turning Radius(Inside/Outside)3.80m/6.30m / 12ft 6in/20ft 8in
Tyres15-625/15-625
S.W.L1000kg/2204lb
S.W.L On Extension1000kg/2204lb
Max. Occupants4
Gradeability30%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.3km/h / 0.19mph
Max. Working SlopeX-2°/Y-3
Up/Down Speed160/120sec
Overall Weight(With Outriggers)23950kg/52800lb
Hydraulic Tank260L/68gal 6pt
Battery80V/520Ah
Charger80V/80A
Driving Motor4×56V/6kW
Lifting Motor53V/28kW
Power SourceElectric
