LEO12TSpider Lift
LEO12T Spider Lift
12,00 mmWorking Height
13,0 lkgPlatform Capacity
Description

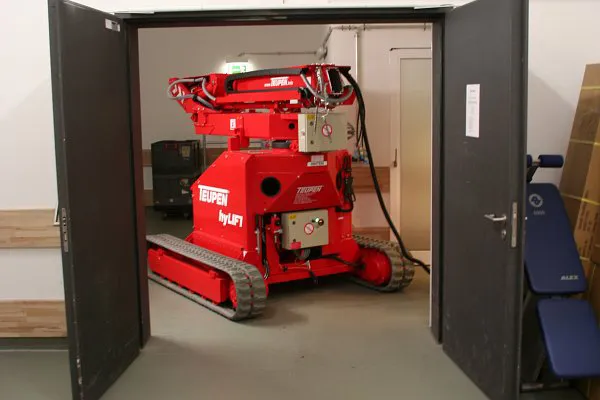

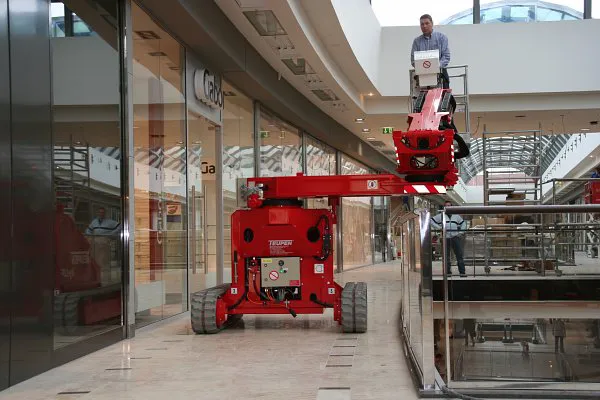

Compact and flexible enough to be used in service lifts, Teupen’s LEO12T offers seamless maneuvering capabilities and zero-emission efficiency. Perfect for multi levels and gentle enough for all kinds of flooring, Teupen LEO12T is versatile enough to be used across applications.
Key Features
- Compact design
- Low surface load
- Drive from platform capabilities
- Intuitive controls
- Gradeability of 3.5%
- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max.12,00 m
Platform height, max.10,00 m
Horizontal outreach, max. (120 kg)8,45 m
Platform capacitiy, max.120 kg
Turntable rotation, max.220 °
Gradeability, max.8,5 ° / 15,0 %
Slope angle, max.8,5 ° / 15,0 %
Travel speed, max.1,2 km/h
Platform (height) (A)1,10 m
Platform (length) (B)0,90 m
Platform (width) (C)0,80 m
Length (D)4,75 m
Length without platform (E)2,80 m
Height (F)1,99 m
Width, min. (G)1,76 m
Track (length x width) (H)2,20 x 0,25 m
Total weight2985 kg
Live load in travelling position4,15 kN/m2
Live load in working position4,15 kN/m2
Battery drive(24 V, 450 Ah, 4,5 kW)
Electric motor(country-specific 1-phase)
Combustion engine (Diesel)Kubota Z602 (10,8 kW / 14,5 hp)
Fuel tank capacity (Diesel engine)13,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
