LEO23GTSpider Lift
LEO23GT Spider Lift
23,00 mmWorking Height
12,0 lkgPlatform Capacity
Description

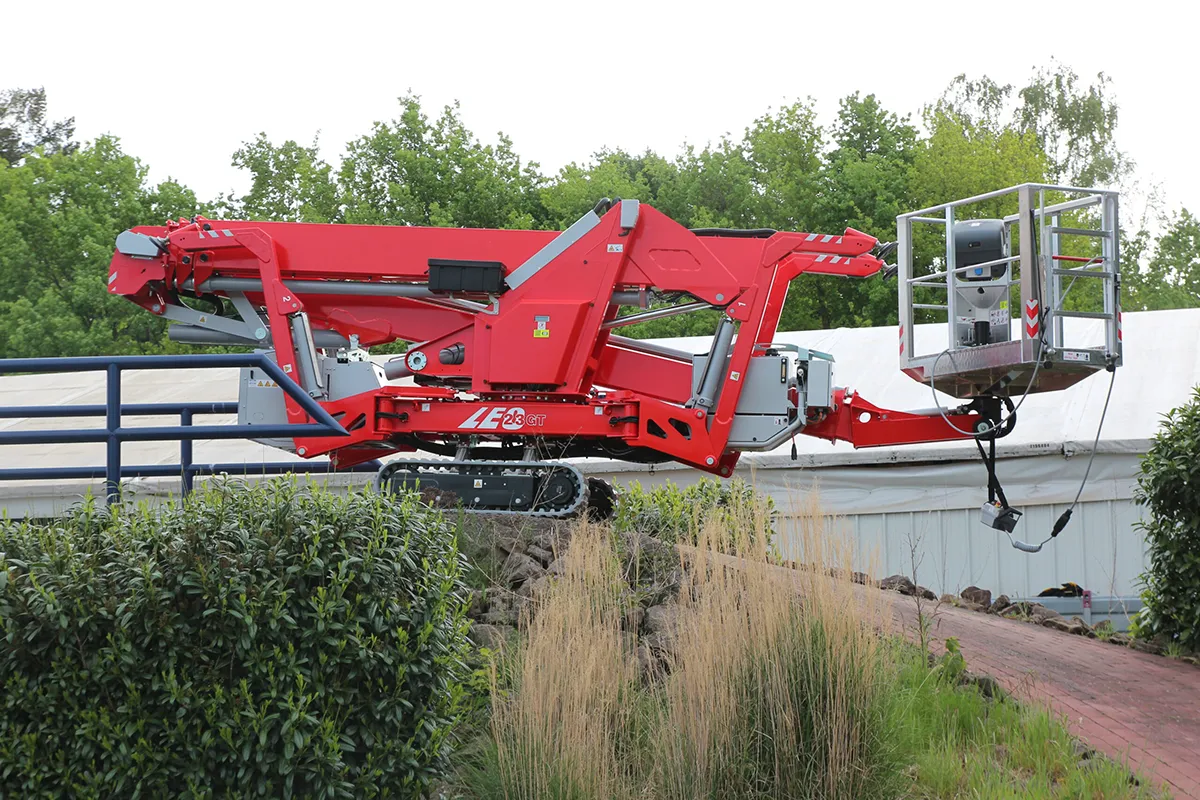

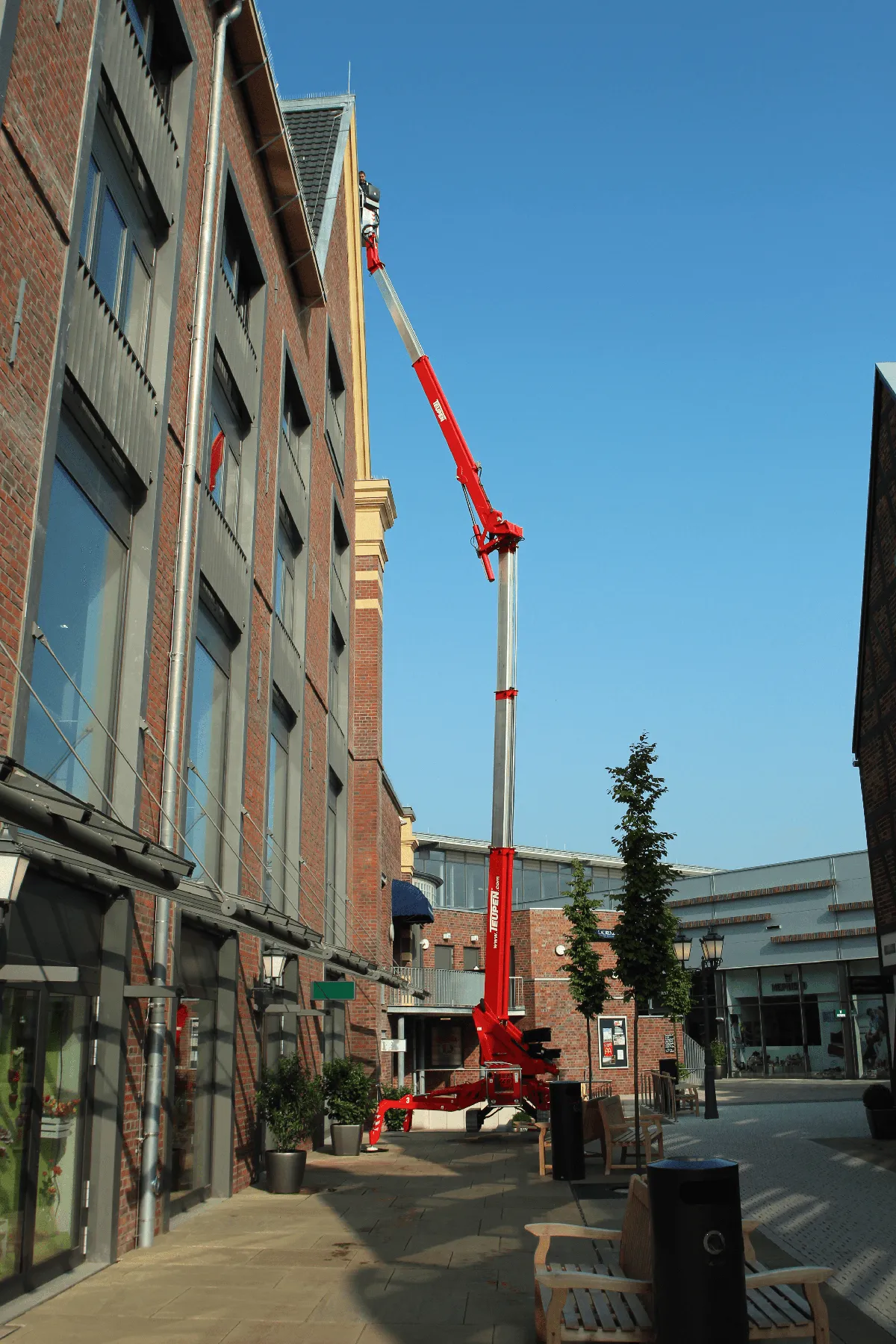

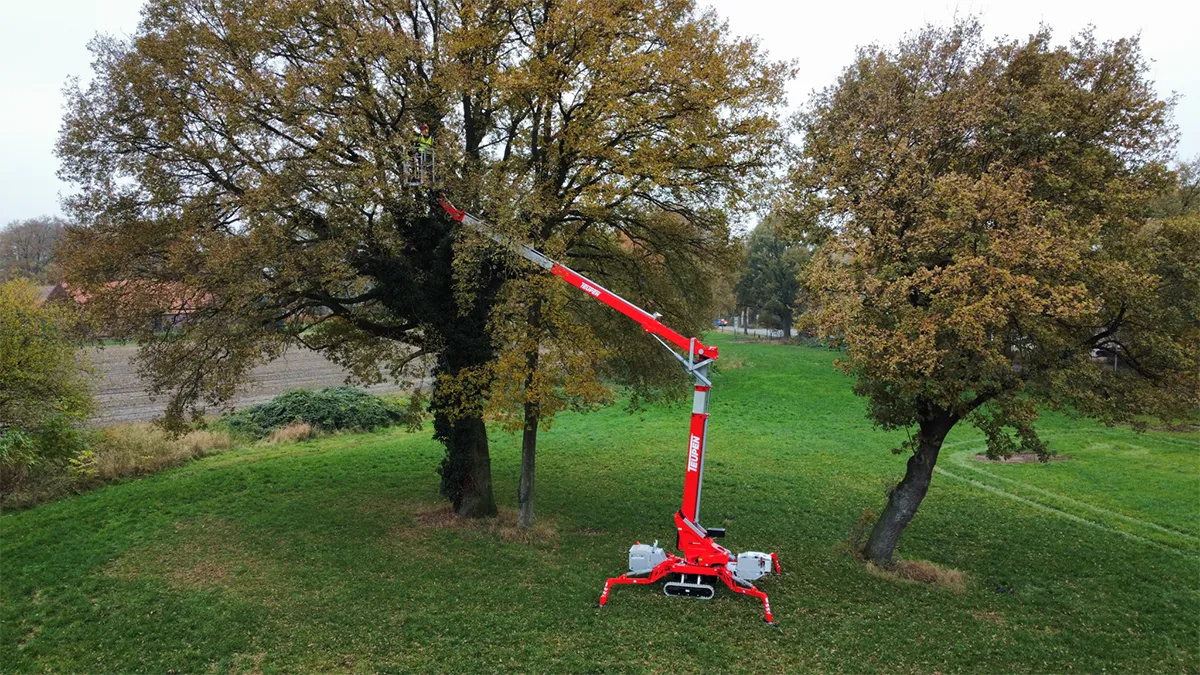

Agile and compact, LEO23GT comes with a rotatable basket and height & width adjustable crawler tracks. Versatile enough to be used across applications, this robust spider lift is equipped with intuitive controls and a high-performance stabiliser system.
Key Features
- Boom design for maximum stability
- Low surface load with non-marking rubber tracks to protect sensitive surfaces
- Intuitive controls system
- Intelligent Teupen “FUZZY”
- High-performance stabiliser system
- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max.23,00 m
Platform height, max.21,00 m

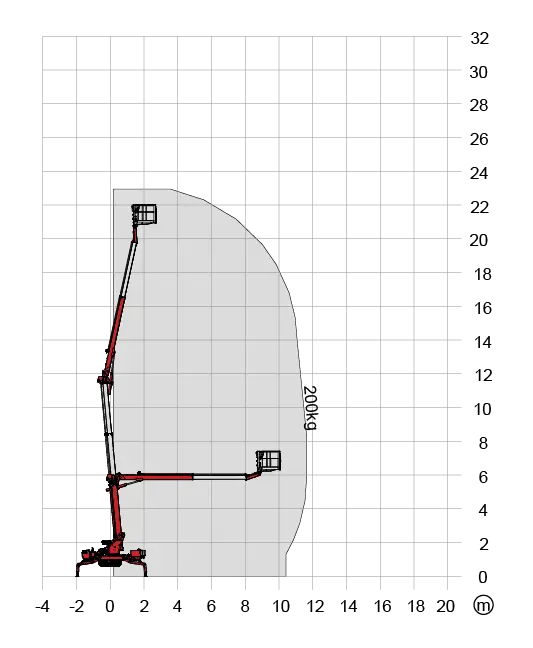

Horizontal outreach, max. (200 kg)11,20 m
Up and over clearance, max.11,50 m
Platform capacitiy, max.200 kg
Platform, rotatable180 °
Turntable rotation, max.360 °
To be jacked up on ground slope of16,7 ° / 30,0 %
Track drive, height- and width-adjustable23 / 45 cm
Gradeability, max.16,7 ° / 30,0 %
Slope angle, max.15,5 ° / 27,0 %
Travel speed, max.1,3 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,40 m
Platform (width) (C)0,70 m
Length (D)6,20 m
Height (F)1,97 m
Width, min. (G)0,98 m
Ground clearance, max. (H)0,40 m
Track (length x width) (I)1,45 x 0,20 m
Outrigger footprint both side wide (length) (J)4,53 m
Outrigger footprint both side wide (width) (K)4,33 m
Outrigger footprint one side narrow (length) (L)5,98 m
Outrigger footprint one side narrow (width) (M)3,42 m
Outrigger footprint both sides narrow (width) (N)2,58 m
Outrigger plate Ø0,18 m
Total weight2990 kg
Live load in travelling position4,02 kN/m2
Live load in working position1,78 kN/m2
Point load per outrigger plate, max.22,40 kN
Electric motor(country-specific 1-phase)
Combustion engine (Diesel)Kubota Z602 (10,8 kW / 14,5 hp)
Battery drive (AGM)48 V
Fuel tank capacity (Diesel engine)12,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
