LEO18GTPLUSSpider Lift
LEO18GTPLUS Spider Lift
18,30 mmWorking Height
12,0 lkgPlatform Capacity
Description
Compact and designed for enhanced performance, LEO18GTPLUS is reinforced with rigid boom technology. With adjustable tracks and intuitive controls, you can achieve maximum outreach without compromising safety. Suitable for a range of applications across industry verticals.
Key Features
- Boom design for maximum stability
- Compact with detachable basket
- Low surface load with non-marking rubber tracks to protect sensitive surfaces
- Intuitive controls system
- Intelligent Teupen “FUZZY”
- High-performance stabiliser system

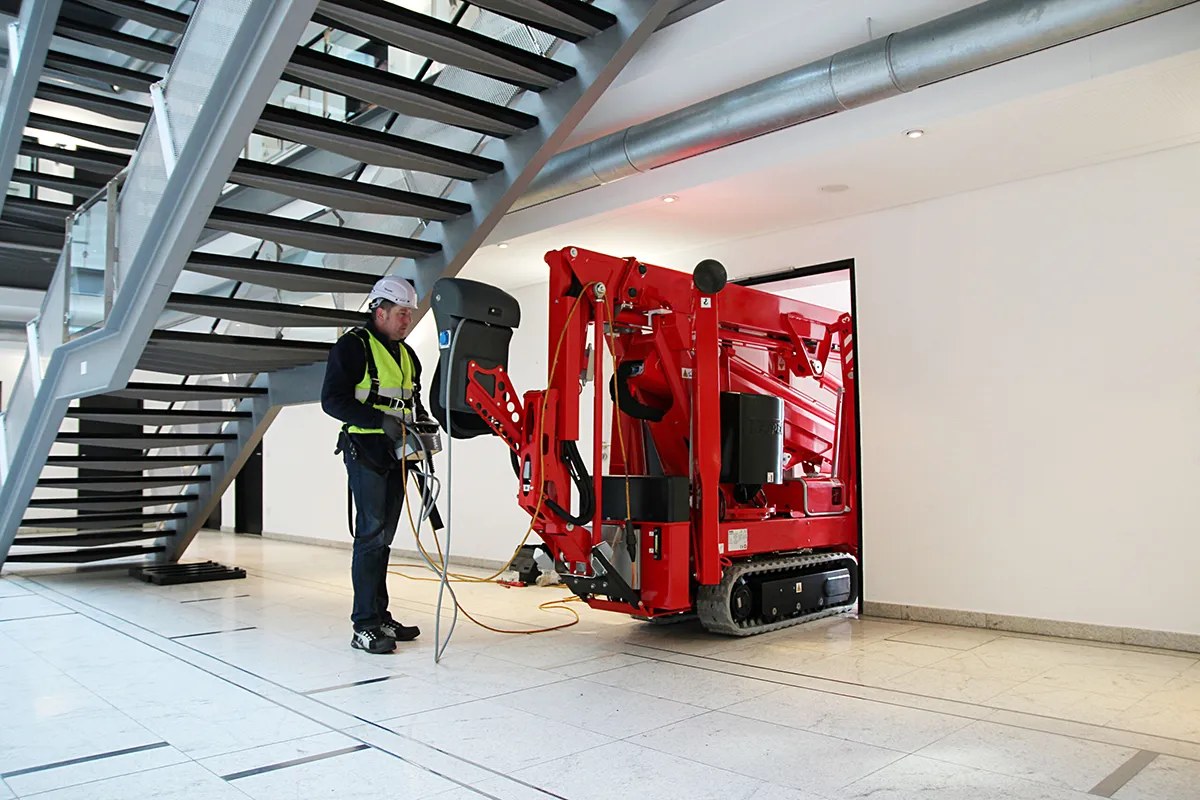

- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max.18,30 m
Platform height, max.16,30 m
Horizontal outreach, max. (200 kg)8,50 m
Up and over clearance, max.8,30 m
Platform capacitiy, max.200 kg
Jib, movable90 °
Turntable rotation, max.355 °
To be jacked up on ground slope of12,0 ° / 21,0 %
Track drive, height- and width-adjustable8 / 16 cm
Gradeability, max.19,7 ° / 35,5 %
Slope angle, max.16,7 ° / 30,0 %
Travel speed, max.1,8 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,40 m
Platform (width) (C)0,70 m
Length (D)5,20 m
Length without platform (E)4,50 m
Height (F)1,99 m
Width, min. (G)0,78 m
Ground clearance, max. (H)0,25 m
Track (length x width) (I)1,45 x 0,20 m
Outrigger footprint (length) (J)3,31 m
Outrigger footprint (width) (K)3,03 m
Outrigger plate Ø0,18 m
Total weight2650 kg
Live load in travelling position7.88 kN/m2
Live load in working position3,13 kN/m2
Point load per outrigger plate, max.17,30 kN
Electric motor(country-specific 1-phase)
Combustion engine (petrol)Vanguard OHV 16HP (11,93 kW / 16,0 hp)
Combustion engine (Diesel)Kubota Z602 (10,8 kW / 14,5 hp)
Battery drive (AGM)48 V
Fuel tank capacity (petrol engine)12,0 l
Fuel tank capacity (Diesel engine)12,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
