LEO15GTSpider Lift
LEO15GT Spider Lift
14,70 mmWorking Height
5,0 lkgPlatform Capacity
Description
Robust yet sleek, LEO15GT is reinforced with Teupen “Fuzzy” for operational efficiency, flexibility, and precision. Equipped with intuitive controls and a high-performance stabiliser system, LEO15GT is extremely versatile to be used across applications and environments.
Key Features
- Boom design for maximum stability
- Compact with detachable basket
- Low surface load with non-marking rubber tracks to protect sensitive surfaces
- Intuitive controls system
- High-performance stabiliser system

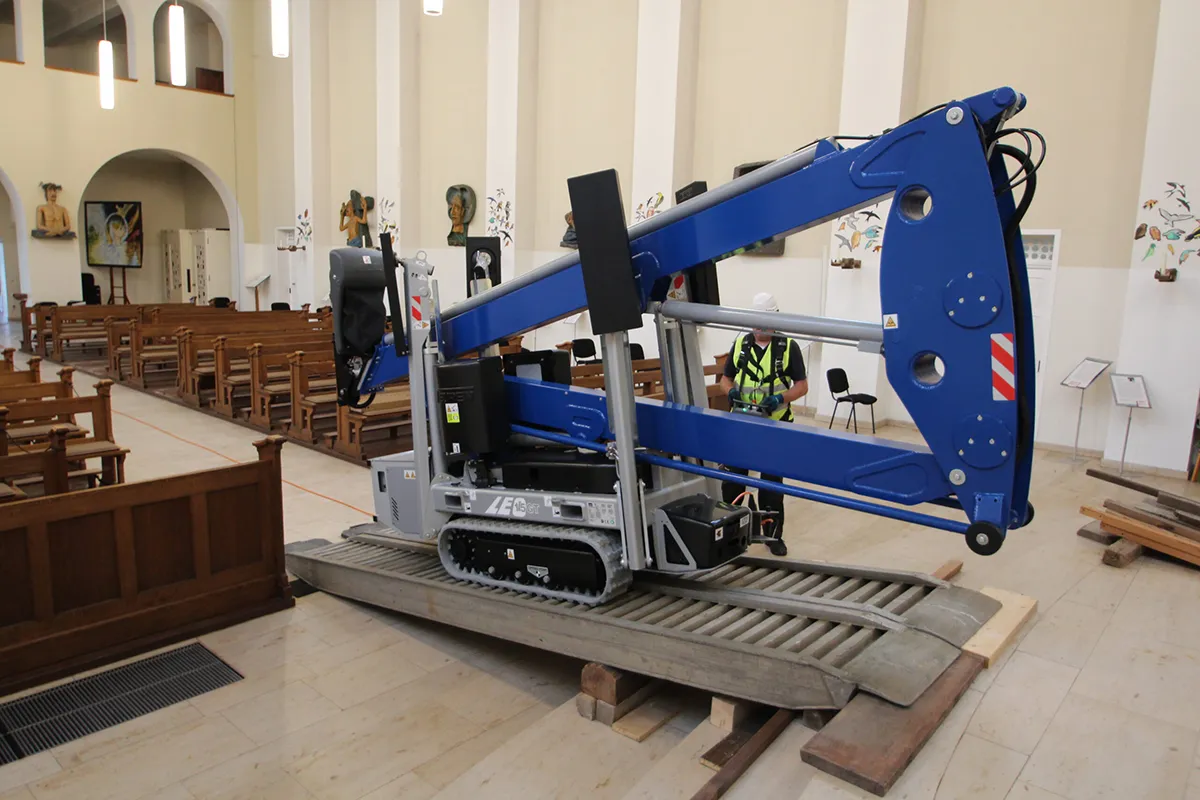

- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max.14,70 m
Platform height, max.12,70 m
Horizontal outreach, max. (200 kg)7,60 m
Up and over clearance, max.5,40 m
Platform capacitiy, max.200 kg
Turntable rotation, max.355 °
To be jacked up on ground slope of13,0 ° / 23,0 %
Track drive, height- and width-adjustable12 / 18 cm
Gradeability, max.16,7 ° / 30,0 %
Slope angle, max.16,7 ° / 30,0 %
Travel speed, max.1,0 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,40 m
Platform (width) (C)0,70 m
Length (D)5,25 m
Length without platform (E)4,52 m
Height (F)1,99 m
Width, min. (G)0,78 m
Ground clearance, max. (H)0,42 m
Track (length x width) (I)1,33 m x 0,18 m
Outrigger footprint (length) (J)3,61 m
Outrigger footprint (width) (K)3,15 m
Outrigger plate Ø0,18 m
Total weight1790 kg
Live load in travelling position4,63 kN/m2
Live load in working position1,92 kN/m2
Point load per outrigger plate, max.12,80 kN
Electric motor(country-specific 1-phase)
Combustion engine (Diesel)Hatz 1B30 (5,4 kW / 7,2 hp)
Battery drive (AGM)48 V
Fuel tank capacity (Diesel engine)5,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
