LEO30TPLUSSpider Lift
LEO30TPLUS Spider Lift

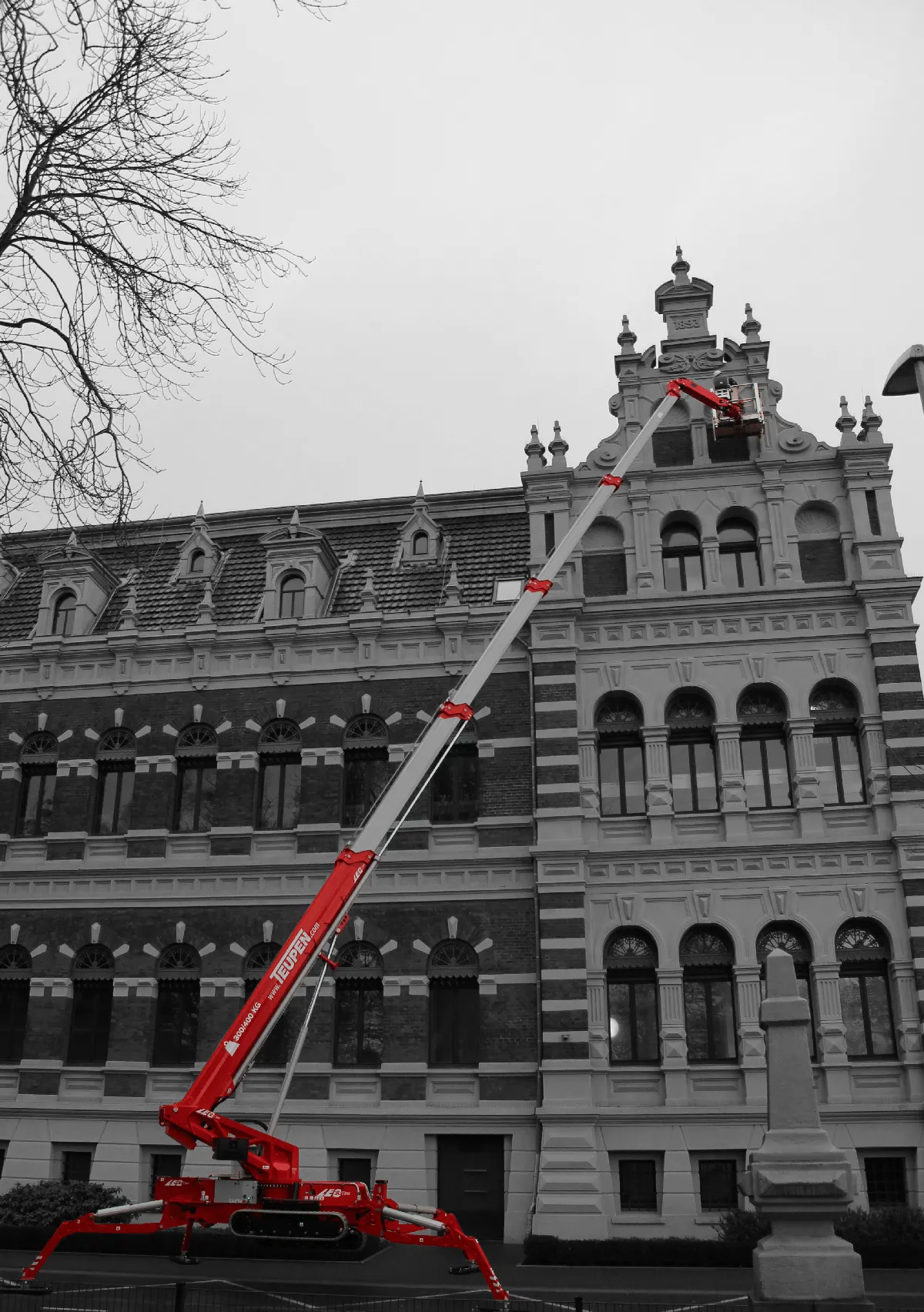

30,00 m / 27,00 mmWorking Height
39,0 lkgPlatform Capacity
Description

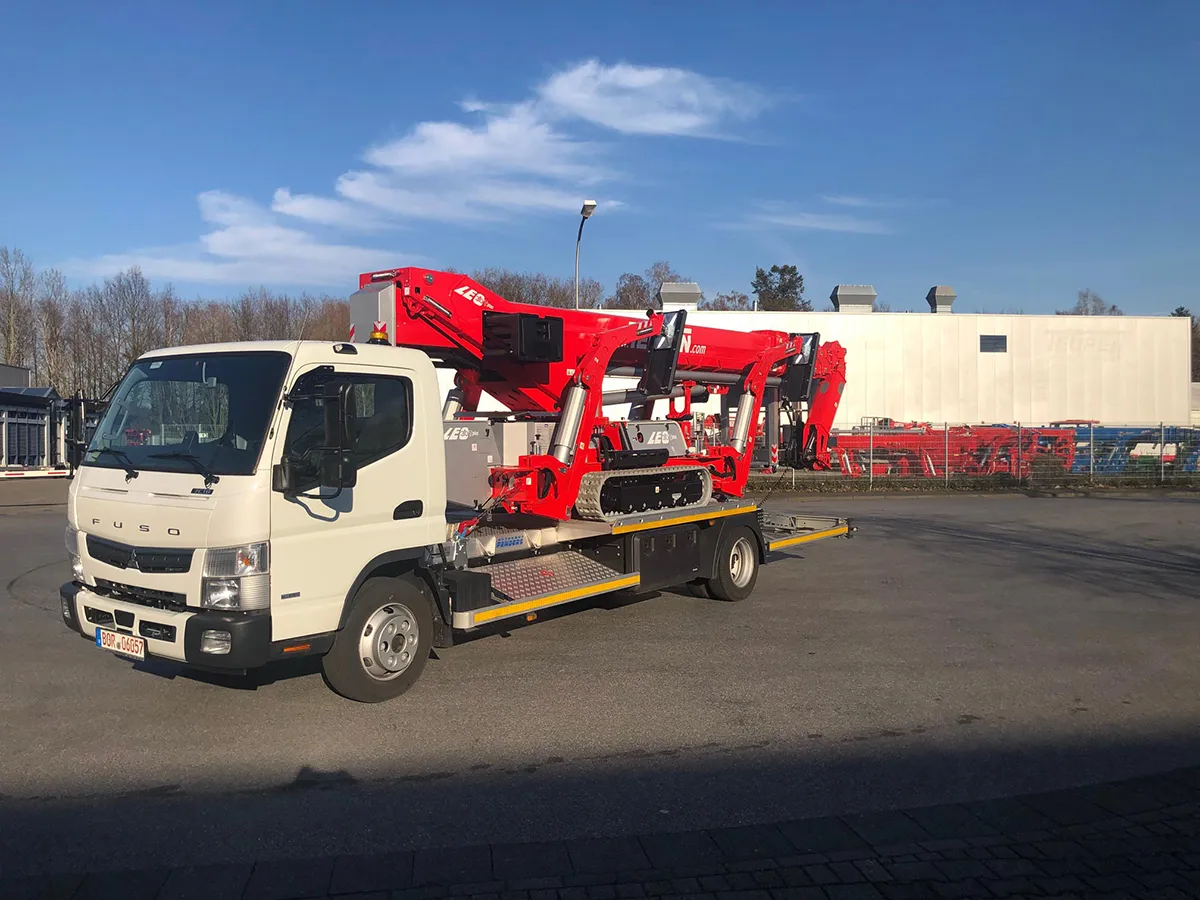

Facilitating precision maneuvering and sensitive surface protection with an innovative truck drive, LEO30TPLUS comes with 4 platform sizes to choose from: 900 X 800 mm/1200 X 800 mm/1500 X 800 mm/2000 X 800 mm. Designed with intuitive controls and a high-performance stabiliser system, LEO30TPLUS is robust and agile to enhance operational efficiency.
Key Features
- Boom design for maximum stability

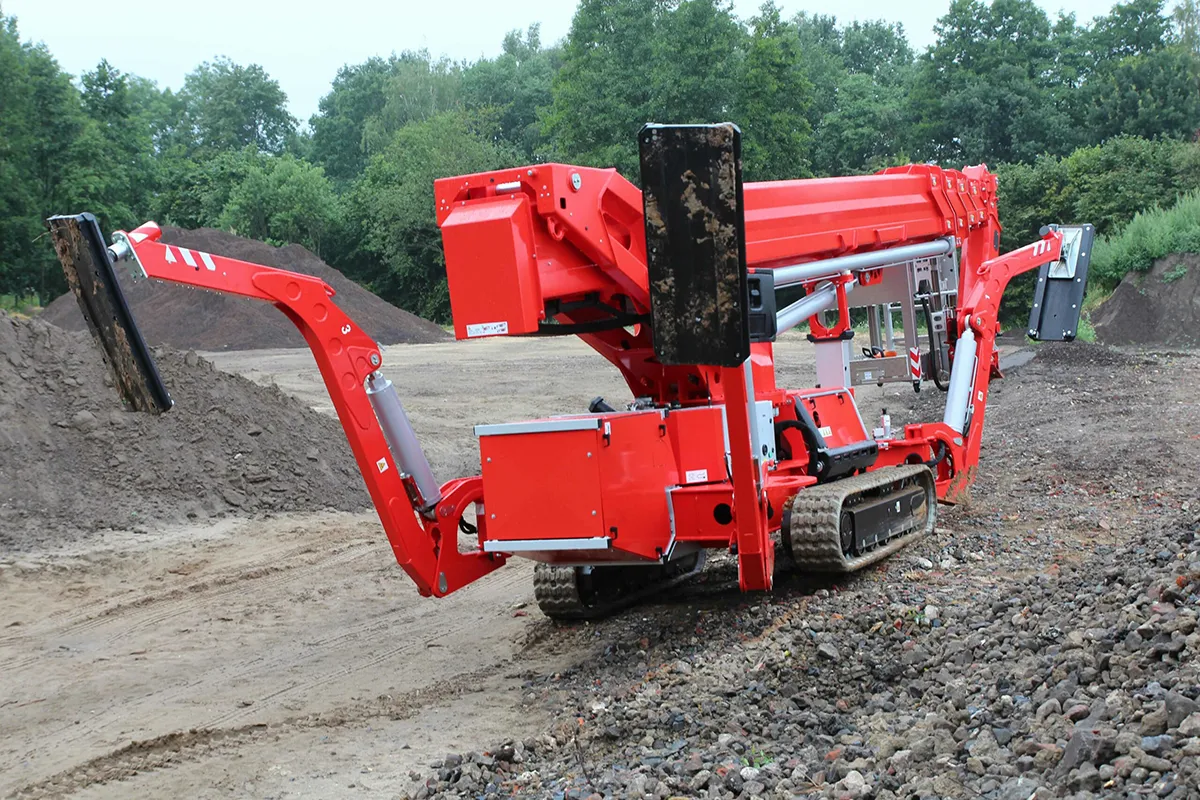

- Low surface load with non-marking rubber tracks to protect sensitive surfaces
- Intuitive controls system
- Intelligent Teupen “FUZZY”
- High-performance stabiliser system
- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max. (300 kg / 400 kg)30,00 m / 27,00 m
Working height, max. (both sides narrow)25,00 m
Working height, max. (one sides narrow)27,00 m
Platform height (300 kg / 400 kg)28,00 m / 25,00 m
Platform height, max. (both side narrow)23,00 m
Platform height, max. (one side narrow)25,00 m
Horizontal outreach, max. (400 kg)12,70 m
Horizontal outreach, max. (300 kg)14,00 m
Horizontal outreach, max. (140 kg)16,00 m
Horizontal outreach, max. (both sides narrow)14,50 m
Platform capacitiy, max.400 kg
Platform capacitiy, max. (both sides narrow)250 kg
Jib, movable180 °
Platform, rotatable180 °
Turntable rotation, max.450 °
To be jacked up on ground slope of16,7 ° / 30,0 %
Track drive, height- and width-adjustable24 / 22 cm
Gradeability, max.16,7 ° / 30,0 %
Slope angle, max.21,0 ° / 38,0 %
Travel speed, max.3,0 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,20 m
Platform (width) (C)0,80 m
Length (D)7,70 m
Length without platform (E)7,50 m
Height (F)1,98 m
Width, min. (G)1,58 m
Ground clearance, max. (H)0,43 m
Track (length x width) (I)1,92 x 0,25 m
wide (lenght) (J) X (wide) (K)5,51 m / 5,60 m
narrow (lenght) (L) X (lenght) (M)7,55 m / 2,99 m
left or right narrow (width) (N)4,30 m
front or back narrow (lenght) (O)6,53 m
Outrigger plate (length x width)0,31 m x 0,22 m
Total weight4550 kg
Live load in travelling position3,60 kN/m2
Live load in working position1,81 kN/m2
Point load per outrigger plate, max.32,00 kN
Electric motor(country-specific 1-phase)
Combustion engine (Diesel)Kubota D902 (16,1 kW / 21,6 hp)
Battery drive (AGM)80 V
Fuel tank capacity (Diesel engine)39,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
