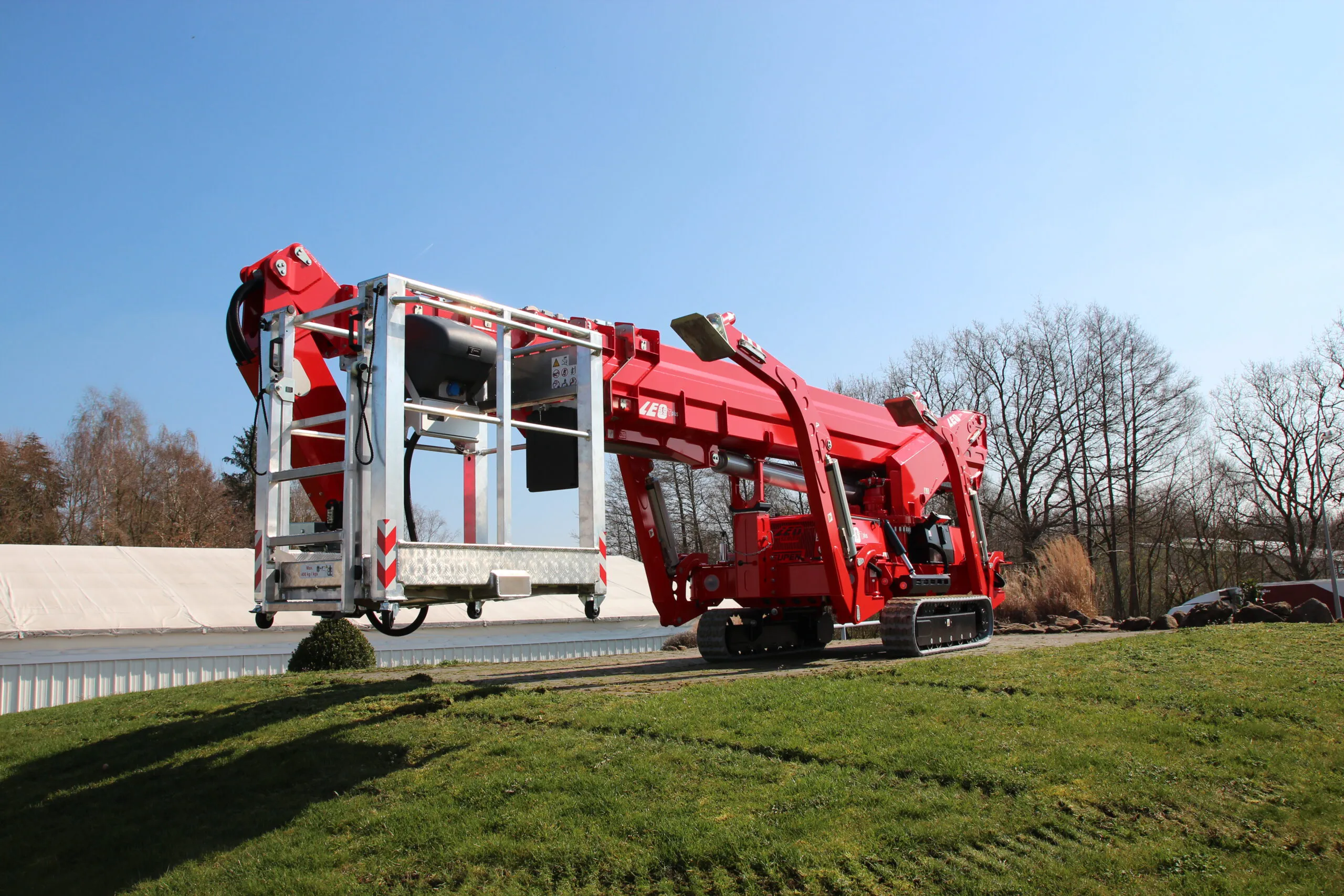

LEO35TPLUSSpider Lift

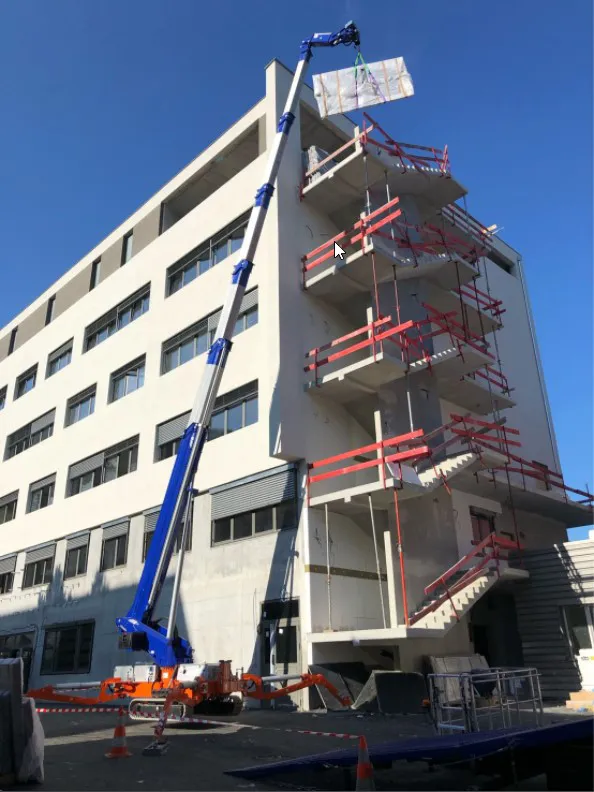

LEO35TPLUS Spider Lift
35,00 m / 32,00 mmWorking Height
39,0 lkgPlatform Capacity
Description
Equipped with a hydraulic track drive for seamless height and width adjustment, LEO35TPLUS has 4 platform sizes to choose from based on the task at hand. Robust and engineered with a high-performance stabiliser system, this spider lift is safe, reliable, and compact.
Key Features
- Boom design for maximum stability
- Low surface load with non-marking rubber tracks to protect sensitive surfaces
- Intuitive controls system
- Intelligent Teupen “FUZZY”
- 4 platform sizes to choose from

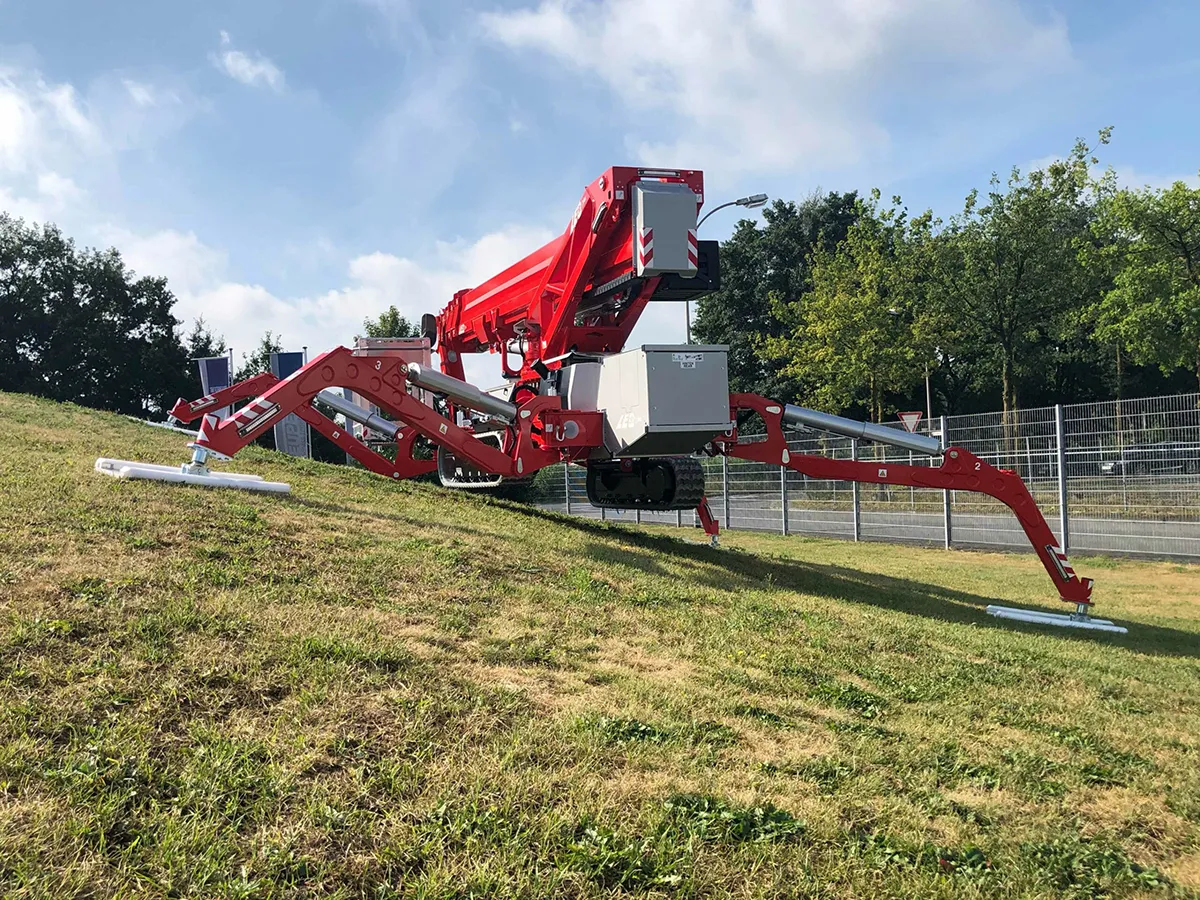

- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max. (300 kg / 400 kg)35,00 m / 32,00 m
Working height, max. (both sides narrow)30,00 m
Working height, max. (one sides narrow)32,00 m
Platform height (300 kg / 400 kg)33,00 m / 30,00 m
Platform height, max. (both side narrow)28,00 m
Platform height, max. (one side narrow)30,00 m

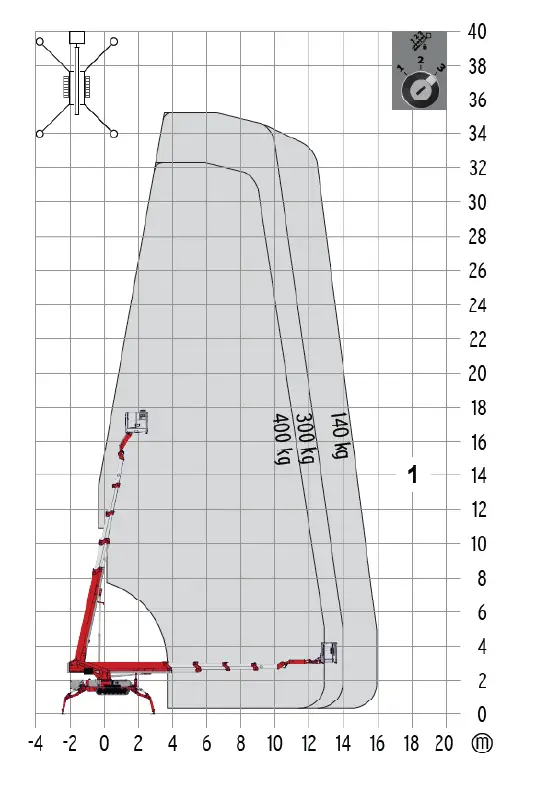

Horizontal outreach, max. (400 kg)13,00 m
Horizontal outreach, max. (300 kg)14,00 m
Horizontal outreach, max. (140 kg)16,00 m
Horizontal outreach, max. (both sides narrow)14,50 m
Platform capacitiy, max.400 kg
Platform capacitiy, max. (both sides narrow)250 kg
Jib, movable180 °
Platform, rotatable180 °
Turntable rotation, max.450 °
To be jacked up on ground slope of16,7 ° / 30,0 %
Track drive, height- and width-adjustable24 / 22 cm
Gradeability, max.16,7 ° / 30,0 %
Slope angle, max.21,0 ° / 38,0 %
Travel speed, max.3,0 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,20 m
Platform (width) (C)0,80 m
Length (D)8,00 m
Length without platform (E)7,80 m
Height (F)1,99 m
Width, min. (G)1,58 m
Ground clearance, max. (H)0,43 m
Track (length x width) (I)1,92 X 0,25 m
Outrigger footprint both side wide (length) (J)5,51 m
Outrigger footprint both side wide (width) (K)5,60 m
Outrigger footprint one side narrow (length) (L)7,55 m
Outrigger footprint one side narrow (width) (M)4,30 m
Outrigger footprint in both sides narrow (width) (N)2,99 m
Outrigger plate (length x width)0.31 m x 0.22 m
Total weight5500kg
Live load in travelling position4.17 kN/m2
Live load in working position2.16 kN/m2
Point load per outrigger plate max.36.00 kN
Electric motor(country-specific 3-phases)
Combustion engine (Diesel)Kubota D902 (16,1 kW / 21,6 hp)
Battery drive (AGM)80 V
Fuel tank capacity (Diesel engine)39,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
