LEO13GTSpider Lift
LEO13GT Spider Lift
12,75 mmWorking Height
5,0 lkgPlatform Capacity
Description
Equipped with a high-performance stabiliser system and dual power capabilities, LEO13GT is easy to transport and maneuver. The intelligent Teupen “Fuzzy” control facilitates smooth, stable, and precise operations even in elevated heights and constrained environments.
Key Features
- Boom design for maximum stability
- Compact with detachable basket
- Low surface load with non-marking rubber tracks to protect sensitive surfaces.
- Intuitive controls system

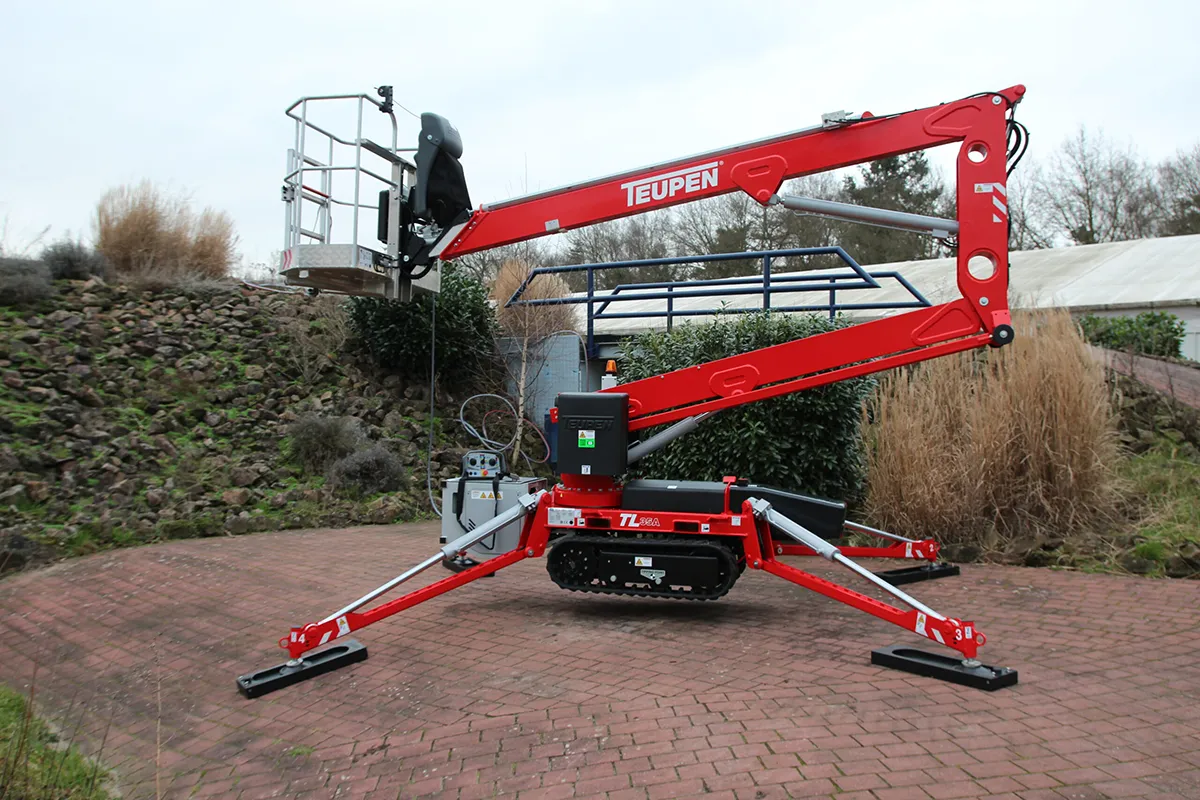

- High-performance stabiliser system

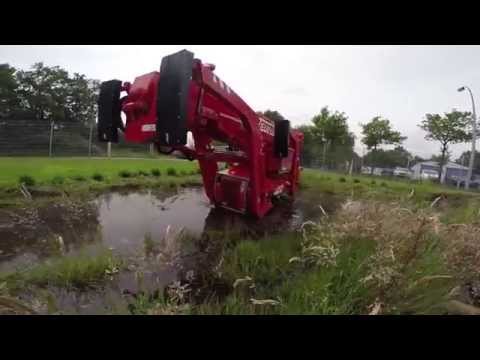

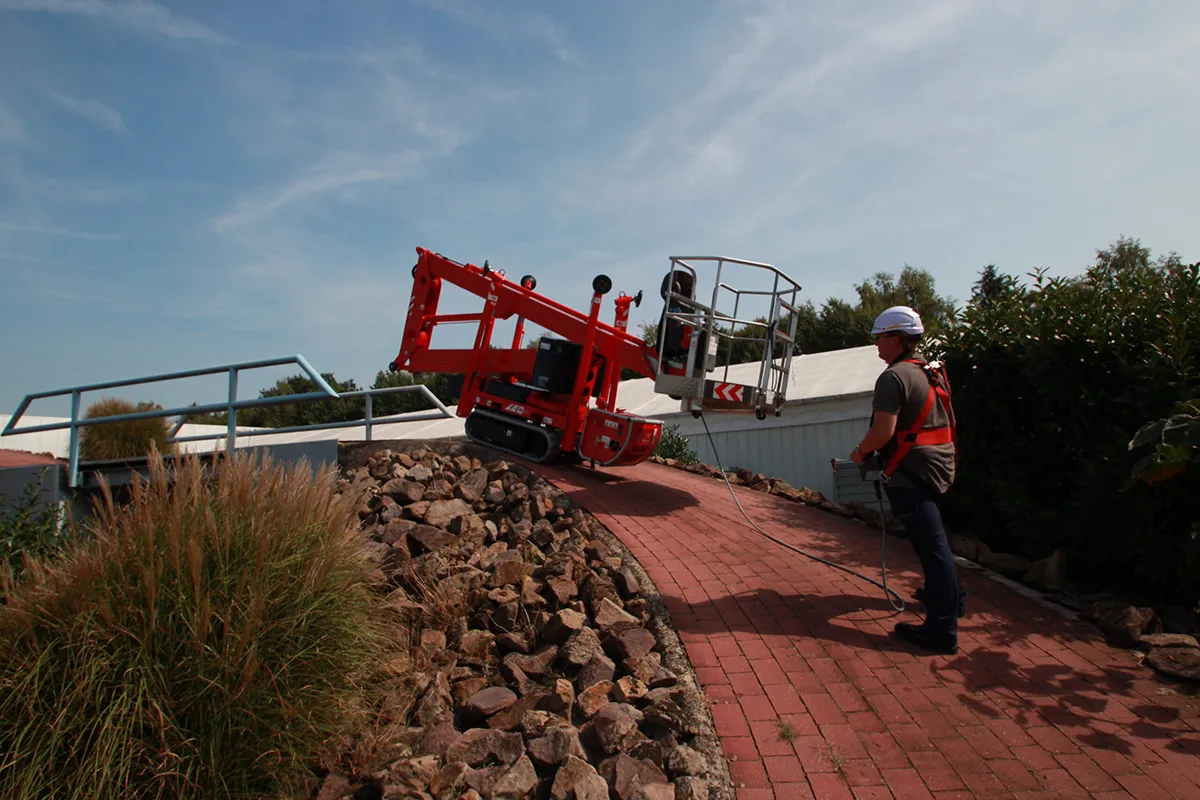

- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max.12,75 m
Platform height, max.10,75 m
Horizontal outreach, max. (200 kg)6,05 m
Up and over clearance, max.4,60 m
Platform capacitiy, max.200 kg
Turntable rotation, max.355 °
To be jacked up on ground slope of10,0 ° / 17,5 %
Gradeability, max.14,4 °/25,5 %
Slope angle, max.14,4 ° / 25,5 %
Travel speed, max.1,0 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,40 m
Platform (width) (C)0,70 m
Length (D)4,75 m
Length without platform (E)4,00 m
Height (F)1,99 m
Width, min. (G)0,78 m
Ground clearance, max. (H)0,40 m
Track (length x width) (I)1,18 x 0,18 m
Outrigger footprint (length) (J)3,69 m
Outrigger footprint (width) (K)2,86 m
Outrigger plate Ø0,18 m
Total weight1450 kg
Live load in travelling position4,31 kN/m2
Live load in working position1,75 kN/m2
Point load per outrigger plate, max.11,70 kN

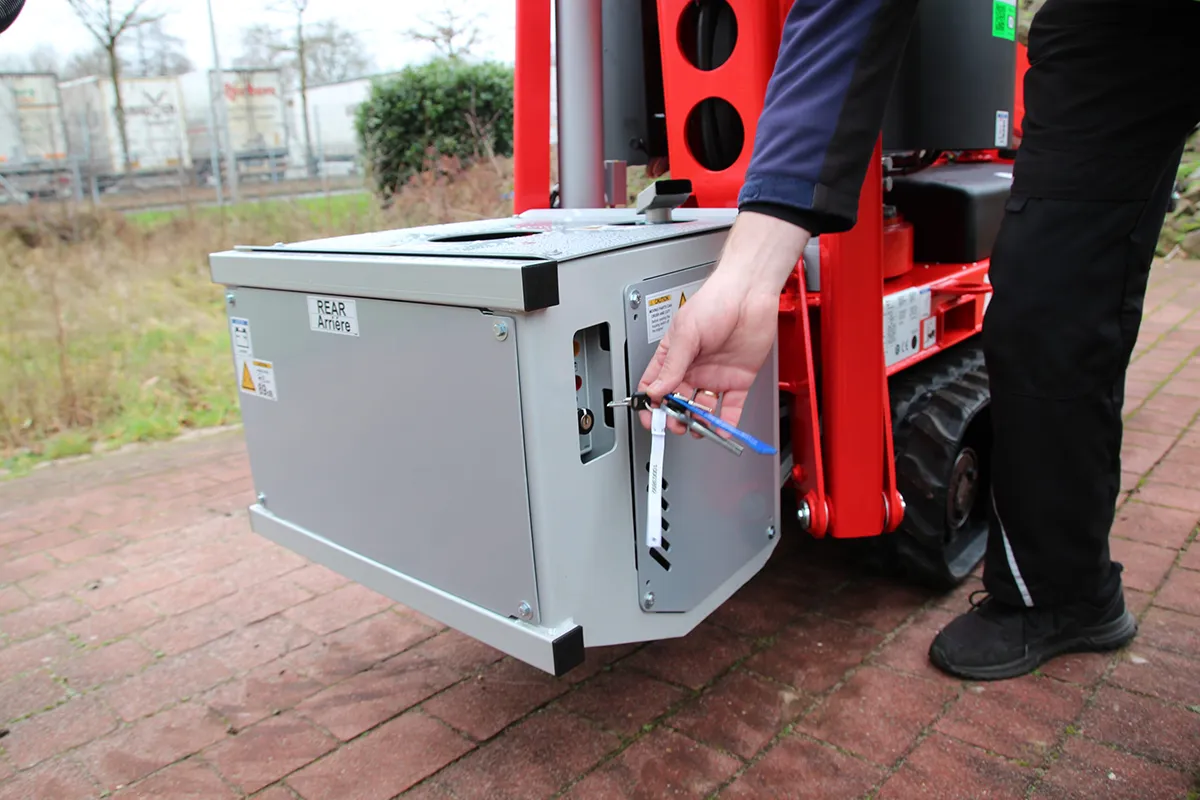

Electric motor(country-specific 1-phase)
Combustion engine (Diesel)Hatz 1B30 (5,4 kW / 7,2 hp)
Battery drive (AGM)48 V
Fuel tank capacity (Diesel engine)5,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
