LEO24GTSpider Lift
LEO24GT Spider Lift
24,00 mmWorking Height
11,5 lkgPlatform Capacity
Description

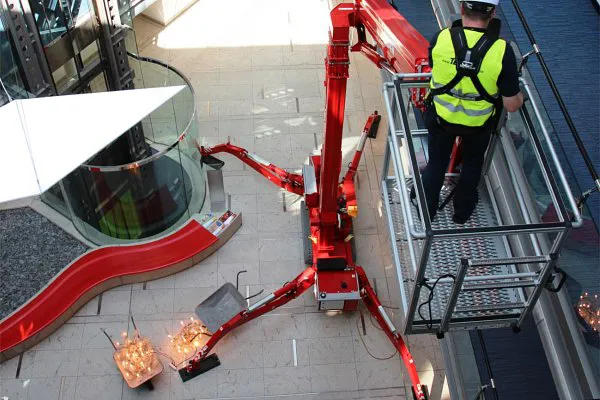

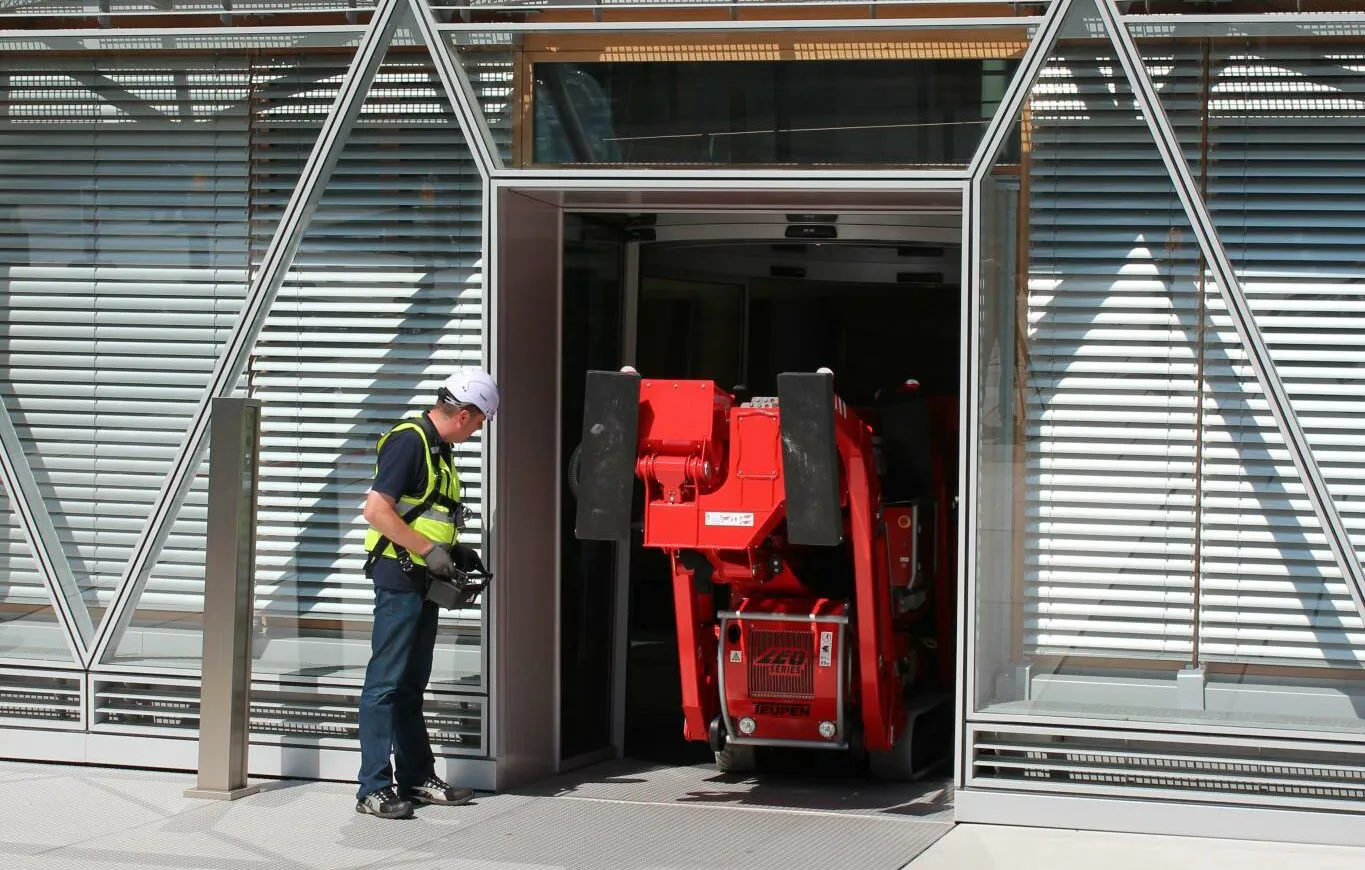

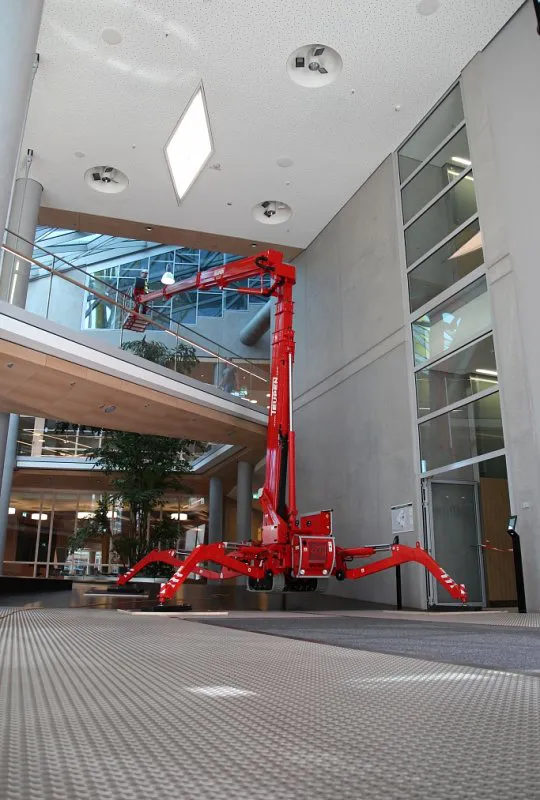

Equipped to ease tasks that require high elevation operations, LEO24GT is compact and agile in one perfect go. With intuitive controls and low surface load, it is versatile enough to be used indoors and outdoors, including sensitive surfaces and environments. The dual power source saves costs and enhances efficiency.
Key Features
- Boom design for maximum stability
- Low surface load with non-marking rubber tracks to protect sensitive surfaces
- Intuitive controls system
- Intelligent Teupen “FUZZY”
- High-performance stabiliser system
- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max.24,00 m
Platform height, max.22,00 m
Horizontal outreach, max. (250 kg)12,00 m
Up and over clearance, max.12,69 m
Platform capacitiy, max.250 kg
Platform, rotatable180 °
Turntable rotation, max.450 °
To be jacked up on ground slope of19.0 ° / 34.0 %
Track drive, height- and width-adjustable19 / 46 cm
Gradeability, max.16,7 ° / 30,0 %
Slope angle, max.19,0 ° / 34,0 %
Travel speed, max.2,0 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,40 m
Platform (width) (C)0,70 m
Length (D)6,40 m
Length without platform (E)5,05 m
Height (F)1,99 m
Width, min. (G)0,98 m
Ground clearance, max. (H)0,44 m
Track (length x width) (I)1,45 x 0,20 m
Outrigger footprint both side wide (length) (J)4,70 m
Outrigger footprint both side wide (width) (K)4,70 m
Outrigger footprint one side narrow (length) (L)6,30 m
Outrigger footprint one side narrow (width) (M)3,65 m
Outrigger footprint both sides narrow (width) (N)2,65 m
Outrigger plate Ø0,18 m
Total weight3300 kg
Live load in travelling position4,40 kN/m2
Live load in working position1,72 kN/m2
Point load per outrigger plate, max.23,70 kN
Electric motor(country-specific 1-phase)
Combustion engine (petrol)Vanguard OHV 16HP (11,93 kW / 16,0 hp)
Combustion engine (Diesel)Kubota Z602 (10,8 kW / 14,5 hp)
Battery drive (AGM)48 V
Fuel tank capacity (petrol engine)11,5 l
Fuel tank capacity (Diesel engine)11,5 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
