LEO23TSpider Lift
LEO23T Spider Lift
23,20 mmWorking Height
25,0 lkgPlatform Capacity

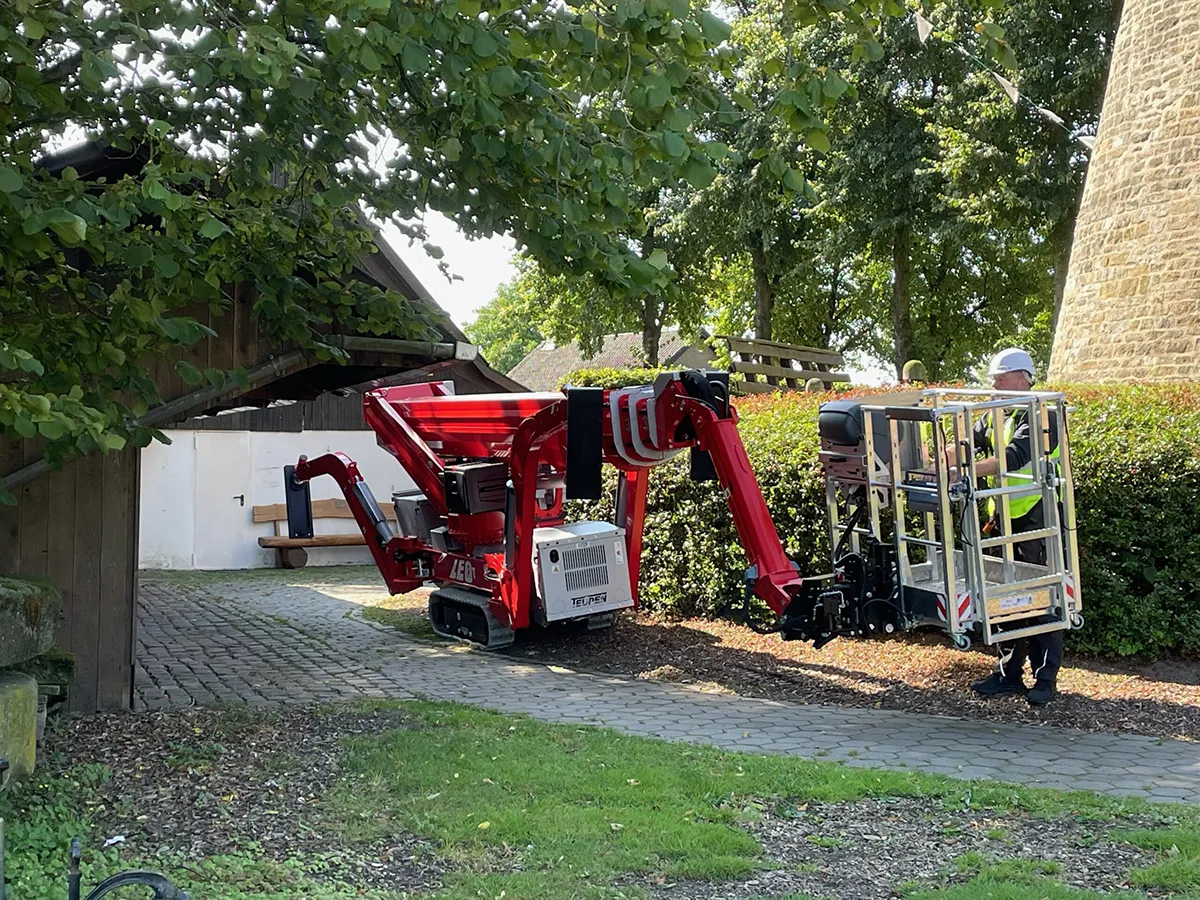

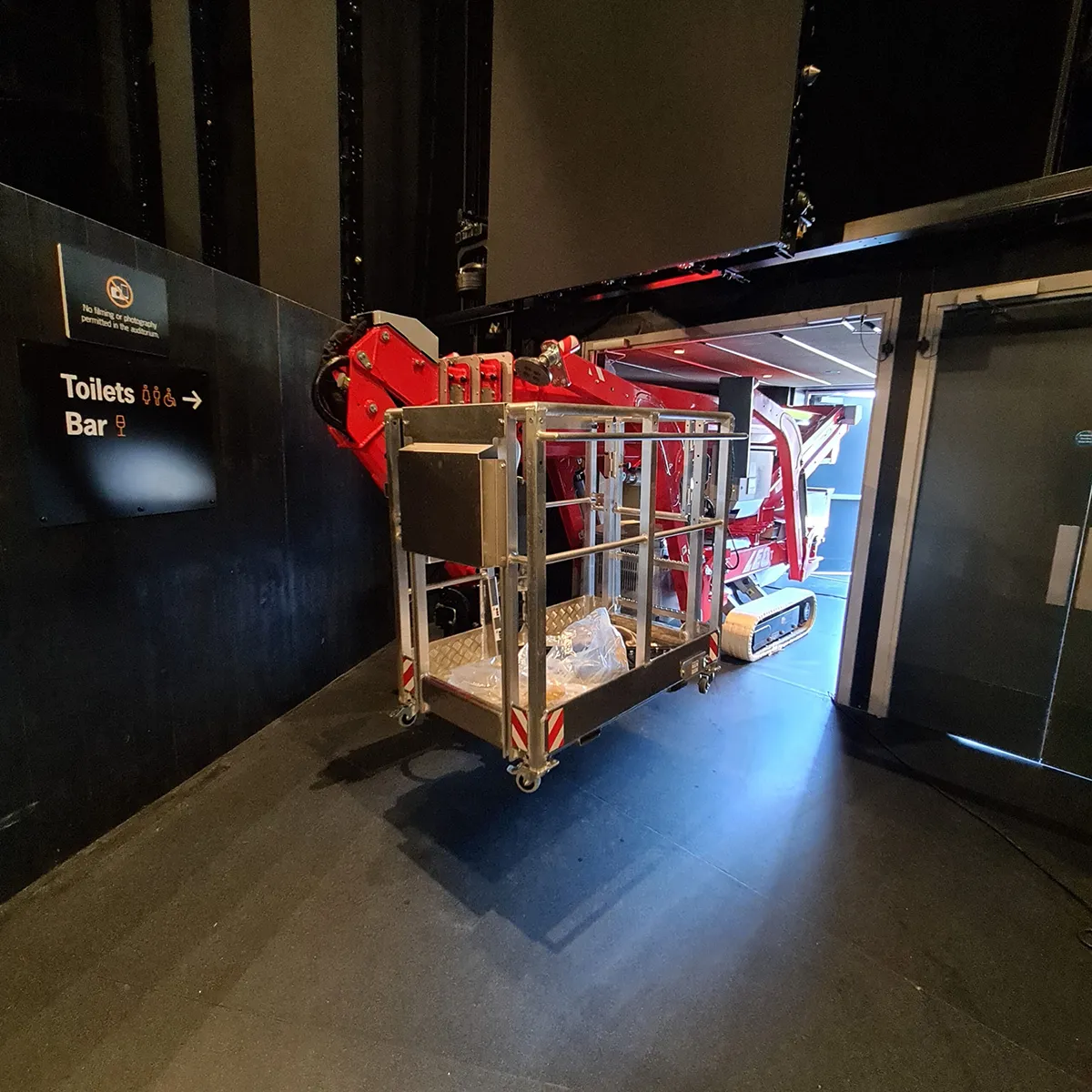

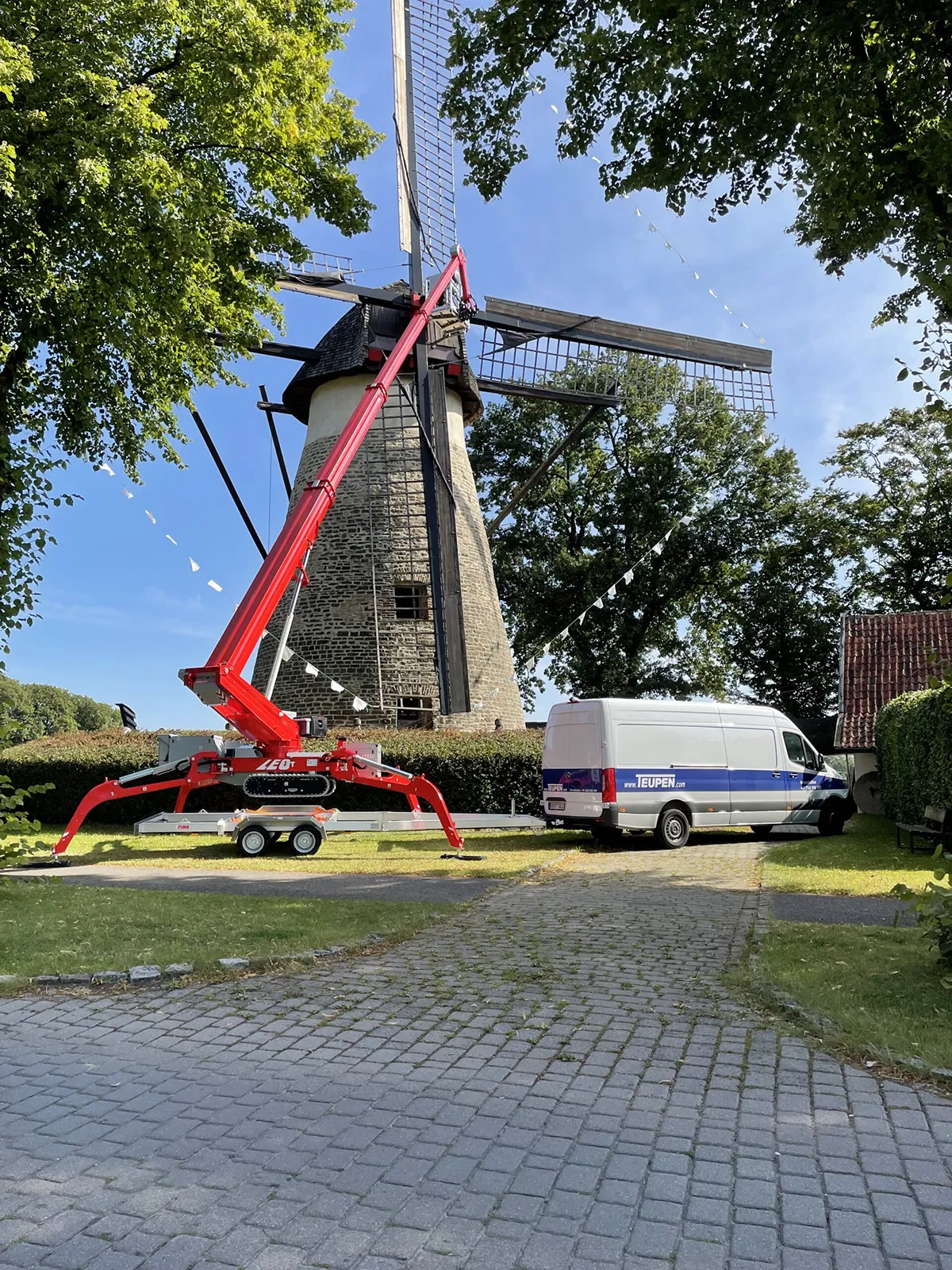

Description
Engineered for operational efficiency and seamless maneuvering, LEO23T comes with height and width adjustable crawler tracks for versatility. While the innovative boom technology ensures safety, the interactive display and intuitive controls ensure precision control and stability.
Key Features
- Boom design for maximum stability
- Low surface load with non-marking rubber tracks to protect sensitive surfaces
- Intuitive controls system
- Intelligent Teupen “FUZZY”
- High-performance stabiliser system
- Ascend/Descend inclines and staircases with ease.
Specifications
Working height, max.23,20 m
Platform height, max.21,20 m
Horizontal outreach, max. (250 kg)12,50 m
Horizontal outreach, max. (80 kg)15,60 m
Platform capacitiy, max.250 kg
Jib, movable180 °
Platform, rotatable180 °
Turntable rotation, max.450 °
To be jacked up on ground slope of16,7 ° / 30,0 %
Track drive, height- and width-adjustable19 / 46 cm
Gradeability, max.16,7 ° / 30,0 %
Slope angle, max.19,0 ° / 34,0 %
Travel speed, max.4,0 km/h
Platform (height) (A)1,10 m
Platform (length) (B)1,20 m
Platform (width) (C)0,80 m
Length (D)6,20 m
Length without platform (E)6,20 m
Height (F)1,99 m
Width, min. (G)0,99 m
Ground clearance, max. (H)0,42 m
Track (length x width) (I)1,45 x 0,20 m
Outrigger footprint both side wide (length) (J)4,70 m
Outrigger footprint both side wide (width) (K)4,70 m
Outrigger footprint one side narrow (length) (L)6,30 m
Outrigger footprint one side narrow (width) (M)3,65 m
Outrigger footprint both sides narrow (width) (N)2,65 m
Outrigger plate Ø0,18 m
Total weight3050 kg
Live load in travelling position3,90 kN/m2
Live load in working position1,60 kN/m2
Point load per outrigger plate, max.23,70 kN
Electric motor(country-specific 1-phase)
Combustion engine (Diesel)Kubota Z602 (10,8 kW / 14,5 hp)
Fuel tank capacity (Diesel engine)25,0 l
SeriesTeupen Leo Series
Power SourceDiesel / Electric
